  11. Boat Hoist Motor, 1725RPM, 115/230VAC
No Product Image Available

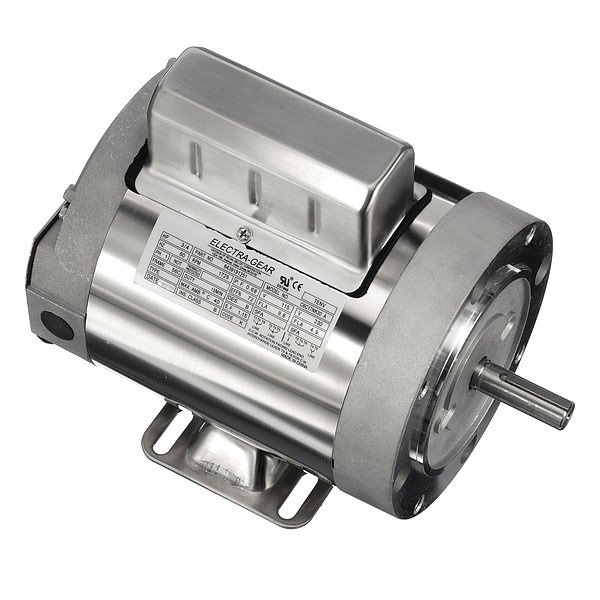

Boat Hoist Motor, 1725RPM, 115/230VAC

  • Mfr # 6439191251

  • Zoro # G211930544

product price: $1,142.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
115/230V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6439191251
Zoro #
G211930544
UPC #
691720104958
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
9 1/4 in
Overall Length
11 1/8 in
Stud Size
4 3/8"-16

Details

HP
3/4 hp
Nameplate RPM
1,725 RPM
Item
Boat Hoist Motor
Voltage
115/230V AC
Frame
56C
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Voltage Compatibility
115/230V AC
RPM Range
1,701-1,800
Phase
Single
Motor Thermal Protection
None
Full Load Amps
9.8/4.9 A
Motor Mounting Type
C-Face, Rigid Base
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Standards
CE, CSA, UL
Motor Mounting Position
Horizontal
Ins. Class
B
Motor Service Factor
1.15
Motor Bearings
Ball
Motor Application
Boat Hoist
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Stainless Steel
Duty Cycle
Intermittent
Weight
38 lb
Nominal Efficiency
72 %
Motor Sub Application
General Purpose
No. of Speeds
1
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V

Description

Boat Hoist Motor, Conduit Box Position F1, Duty Cycle Intermittent, Frame 56C, Hz 60 Hz, Full Load Amps 9.8/4.9 A, HP 3/4 hp, Ins. Class B, Length Less Shaft 9 1/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Boat Hoist, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Frame Material Stainless Steel, Motor Mounting Position Horizontal, Motor Mounting Type C-Face, Rigid Base, Motor Service Factor 1.15
