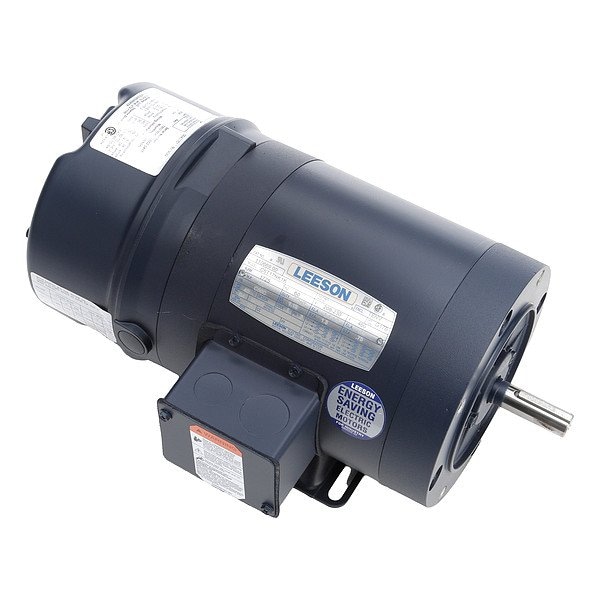

BrakeMotor, 1/3hp, 1725RPM, 208-230/460VAC

  • Mfr # 110669.00

  • Zoro # G811930203

product price:  $992.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
208-230/460V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
110669.00
Zoro #
G811930203
UPC #
691720009048
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
13 1/2 in
Length Less Shaft
11 11/16 in
Shaft Diameter
5/8 in
Frame Size
56C

Details

HP
1/3 hp
Nameplate RPM
1,725 RPM
Item
Brake Motor
Voltage
208-230/460V AC
Frame
56C
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Ins. Class
B
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Usable @ 208V
Usable at 208V
Motor Bearings
Ball
Phase
Three
Voltage Compatibility
230V AC, 460V AC
Nominal Efficiency
72 %
No. of Speeds
1
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Motor Service Factor
1.15
Standards
CSA, UL Listed
Motor Frame Material
Steel
Weight
33 lb
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1
RPM Range
1,701-1,800
Full Load Amps
0.65 A
Hz
60 Hz
Motor Mounting Type
C-Face, Rigid Base
Brake Rating
3 ft-lb
Inverter Rating
Not Inverter Rated
Inverter Rated
Not Inverter Rated
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Number of Speeds
1
Frequency
60 Hz
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Application
General Purpose
Efficiency Rating
Standard Efficiency (IE1)
Brake Torque
3 ft-lb
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Insulation Class
B
Mounting Position
Horizontal
Product Type
Brake Motor
Full Load Current @ 60 Hz
0.65 A

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 0.65 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base
