  11. BrakeMotor, 1/3hp, 1725RPM, 115/208-230VAC
No Product Image Available

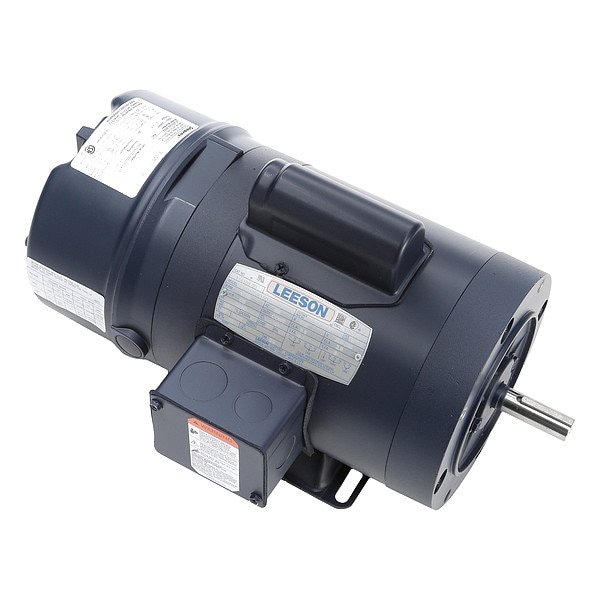

BrakeMotor, 1/3hp, 1725RPM, 115/208-230VAC

  • Mfr # 114165.00

  • Zoro # G411930061

product price: $1,039.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
115/208-230V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
114165.00
Zoro #
G411930061
UPC #
691720013403
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Length
14 in
Length Less Shaft
12 3/16 in
Shaft Length
1 7/8 in

Details

HP
1/3 hp
Nameplate RPM
1,725 RPM
Item
Brake Motor
Voltage
115/208-230V AC
Frame
56C
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Thermal Protection
None
Motor Mounting Type
C-Face, Rigid Base
Standards
CSA, UL Listed
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Hz
60 Hz
Phase
Single
Nominal Efficiency
70 %
Full Load Amps
2.9 A
Duty Cycle
Continuous
RPM Range
1,701-1,800
Voltage Compatibility
115V AC, 230V AC
Motor Shaft Rotation
CW/CCW
Usable @ 200V
Not Usable at 200V
Weight
31 lb
No. of Speeds
1
Ins. Class
B
Motor Frame Material
Steel
Motor Bearings
Ball
Conduit Box Position
F1
Motor Application
General Purpose
Usable @ 208V
Usable at 208V
Motor Shaft Design
Keyed
Motor Service Factor
1.15
Brake Rating
3 ft-lb
Inverter Rated
Not Inverter Rated

Description

Brake Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 2.9 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base
