  6. BrakeMotor, 1/3hp, 1725RPM, 208-230/460VAC
No Product Image Available

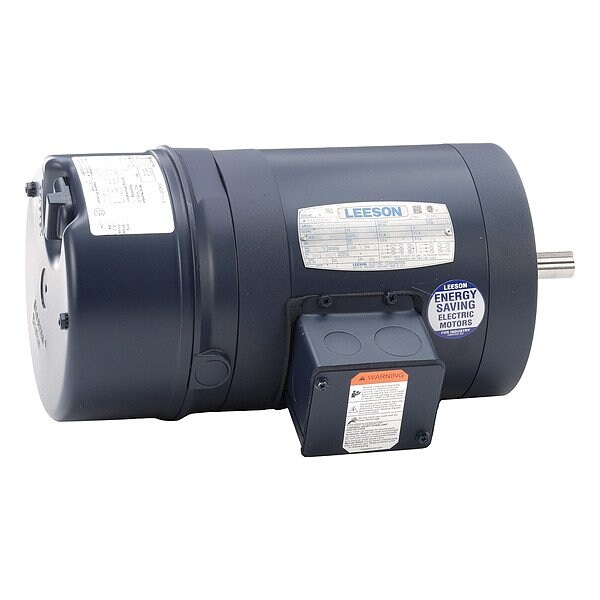

BrakeMotor, 1/3hp, 1725RPM, 208-230/460VAC

  • Mfr # 114158.00

  • Zoro # G811930043

product price:  $926.54
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
208-230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
114158.00
Zoro #
G811930043
UPC #
691720013250
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Length
13 1/2 in
Shaft Length
1 7/8 in
Length Less Shaft
11 11/16 in

Details

HP
1/3 hp
Nameplate RPM
1,725 RPM
Item
Brake Motor
Voltage
208-230/460V AC
Frame
56C
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Shaft Rotation
CW/CCW
Usable @ 200V
Not Usable at 200V
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Bearings
Ball
Usable @ 208V
Usable at 208V
Motor Thermal Protection
None
Conduit Box Position
F1
Nominal Efficiency
72 %
Phase
Three
Motor Mounting Position
Horizontal
Standards
CSA, UL Listed
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Weight
29 lb
RPM Range
1,701-1,800
Duty Cycle
Continuous
Voltage Compatibility
230V AC, 460V AC
Motor Application
General Purpose
No. of Speeds
1
Full Load Amps
0.65 A
Motor Frame Material
Steel
Motor Mounting Type
C-Face
Brake Rating
3 ft-lb
Inverter Rated
Not Inverter Rated

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 0.65 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
