Shop LEESON

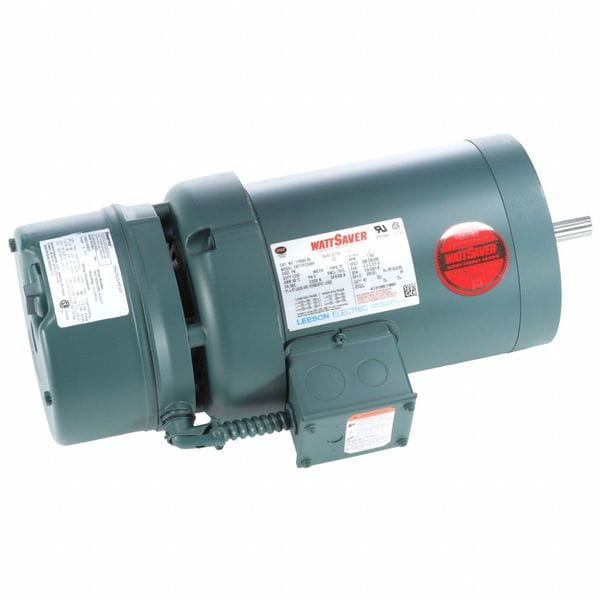

BrakeMotor, 1hp, 1760RPM, 230/460VAC, 56C

  • Mfr # 119564.00

  • Zoro # G807353917

product price:  $1,657.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1 hp
Nameplate RPM
1,760 RPM
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119564.00
Zoro #
G807353917
UPC #
691720098868
Country of Origin
Mexico

Dimensions

Overall Length
17 1/4 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Item
Brake Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1 hp
Nameplate RPM
1,760 RPM
Frame
56C
Voltage
230/460V AC
Motor Mounting Type
C-Face
Brake Rating
6 ft-lb
RPM Range
1,701-1,800
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Motor Mounting Position
Horizontal
Motor Application
General Purpose
Conduit Box Position
F1
Motor Bearings
Ball
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Usable at 208V
Motor Thermal Protection
T-Stat
Motor Shaft Rotation
CW/CCW
Weight
42 lb
Voltage Compatibility
208-230/460V AC
Motor Service Factor
1.15
Motor Frame Material
Steel
Standards
CSA, UL
No. of Speeds
1
Duty Cycle
Continuous
Phase
Three
Full Load Amps
3.2-3.2/1.6 A
Hz
60 Hz
Usable @ 200V
Not Usable at 200V
Inverter Rating
Not Inverter Rated
Inverter Rated
Not Inverter Rated
Frequency
60 Hz
Efficiency Rating
Premium Efficiency (IE3)
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Product Type
Brake Motor
Frame Material
Steel
Brake Torque
6 ft-lb
Shaft Design
Keyed
Bearing Type
Ball
Application
General Purpose
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
F
Full Load Current @ 60 Hz
3.2-3.2/1.6 A

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, 3.2-3.2/1.6 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
