Shop DAYTON

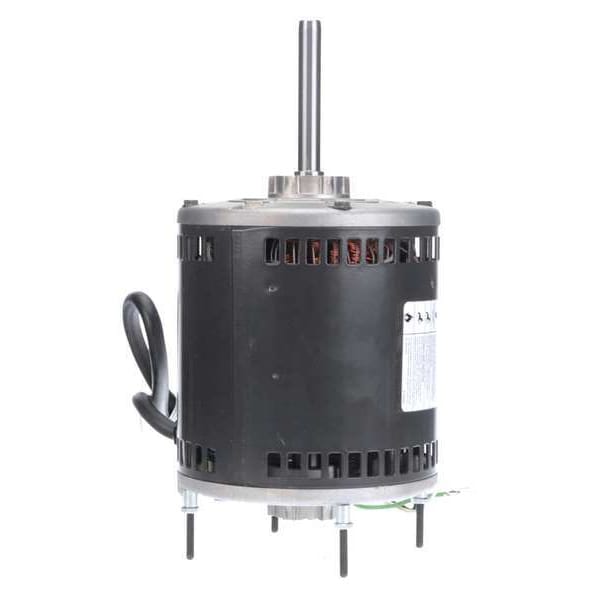

Motor, PSC, 1/4 HP, 1725 RPM, 115V, 48Y, OAO

  • Mfr # 5BE52

  • Zoro # G1800705

product price:  $425.99
/ea
Free Shipping & Returns

Key Features

Length Less Shaft
7 1/4 in
Motor Sub Application
Direct Drive
Hz
60 Hz
Motor Mounting Position
All Angle
Motor Service Factor
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5BE52
Zoro #
G1800705
UPC #
190735342176
Country of Origin
United States

Dimensions

Length Less Shaft
7 1/4 in
Stud Size
#10-32
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 11/16 in
Shaft Dia.
1/2 in
Shaft Length
3 1/4 in
Mounting Stud Thread Size
#10-32
Shaft Diameter
1/2 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.7 in
Overall Length
9 29/32 in

Details

Motor Sub Application
Direct Drive
Hz
60 Hz
Motor Mounting Position
All Angle
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
Voltage
115V AC
Full Load Amps
4.2 A
Motor Application
HVAC/R
Mounting Stud Location
4/Opposite Shaft End
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Enclosure Design
Open Air-Over
Motor Bearings
Ball
Ins. Class
B
Motor Shaft Design
Flat
HP
1/4
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Nameplate RPM
1,725
Mounting Stud Pattern
3 5/8 in
Motor Mounting Type
Ring/Stud
No. of Speeds
1
RPM Range
1,701-1,800
Duty
Continuous
Application
Fan/Blower
Phase
Single
Frame
48Y
Capacitor Required
Capacitor Included
Item
Fan and Blower Motor
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Mounting Holes
(4) #10-32
Stud Quantity
4
Includes
Capacitor
Number of Shafts
1
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F3
Mounting
Stud
Number of Speeds
1
Shaft Design
Flat
Motor Enclosure Type
Open Air Over
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
4.2 A
Nameplate Service Factor @ 60 Hz
1
Sub Application
Ventilator
Frame Material
Steel
Mounting Position
All Angle
Drive Type
Direct Drive
Bearing Type
Ball

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 4.2 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
