  11. BrakeMotor, 2hp, 1745RPM, 208-230/460VAC
No Product Image Available

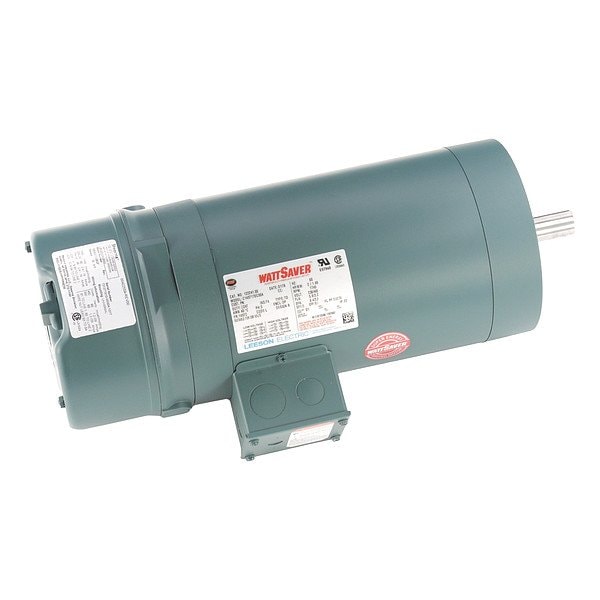

BrakeMotor, 2hp, 1745RPM, 208-230/460VAC

  • Mfr # 122241.00

  • Zoro # G711930921

product price: $1,924.99
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Nameplate RPM
1,745 RPM
Shaft Dia.
7/8 in
Voltage
208-230/460V AC
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122241.00
Zoro #
G711930921
UPC #
691720098530
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Overall Length
17 1/2 in
Length Less Shaft
15 1/2 in
Shaft Length
2 in

Details

HP
2 hp
Nameplate RPM
1,745 RPM
Item
Brake Motor
Voltage
208-230/460V AC
Frame
145TC
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Motor Mounting Type
C-Face
RPM Range
1,701-1,800
No. of Speeds
1
Motor Application
General Purpose
Nominal Efficiency
86.5 %
Hz
60 Hz
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
Ins. Class
F
Motor Mounting Position
Horizontal
Weight
53 lb
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Voltage Compatibility
230V AC, 460V AC
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
None
Full Load Amps
3.0 A
Standards
CSA, UL Listed
Motor Shaft Rotation
CW/CCW
Phase
Three
Motor Service Factor
1.15
Brake Rating
10 ft-lb
Inverter Rated
Not Inverter Rated

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.0 A Full Load Amps, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Mounting Position Horizontal
