Leeson

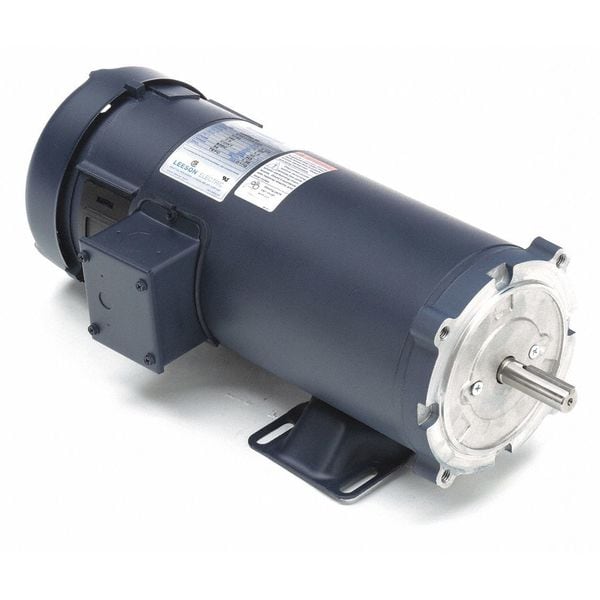

DC Permanent Magnet Motor, 7.6A, 180VDC

Hover or click to zoom Tap to zoom
Key Features
  • Item: DC Permanent Magnet Motor
  • HP: 1 1/2
  • Voltage: 180V DC
  • Nameplate RPM: 1,750
  • Shaft Dia.: 5/8 in
  • Frame: 56C
  • Full Load Amps: 7.6 A
  • RPM Range: 1,701-1,800
See full product details
$847.58
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Shaft Dia. 5/8 in
Length Less Shaft 14 7/8 in
Overall Length 16 13/16 in
Shaft Length 1 7/8 in
Body Dia. 5 5/8 in

Details

Item DC Permanent Magnet Motor
HP 1 1/2
Voltage 180V DC
Nameplate RPM 1,750
Frame 56C
Full Load Amps 7.6 A
RPM Range 1,701-1,800
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
RPM Group 1701-1800
Motor Design Permanent Magnet DC
Standards CSA (LR2025), UL (E49747)
Brush Type External
Full Load Torque 54 in-lb
Max. Ambient Temp. 40 Degrees C
Voltage Compatibility 180V DC
Bearings Ball
Motor Mounting Type Face/Base
Ins. Class H

Description

DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 1/2 HP, Nameplate RPM 1,750, Voltage 180V DC, 7.6 A Full Load Amps, 56C Frame, Full Load Torque 54 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type External

    Restrictions and Compliance

    • Hazardous material

    Reviews of Leeson #108092.00
