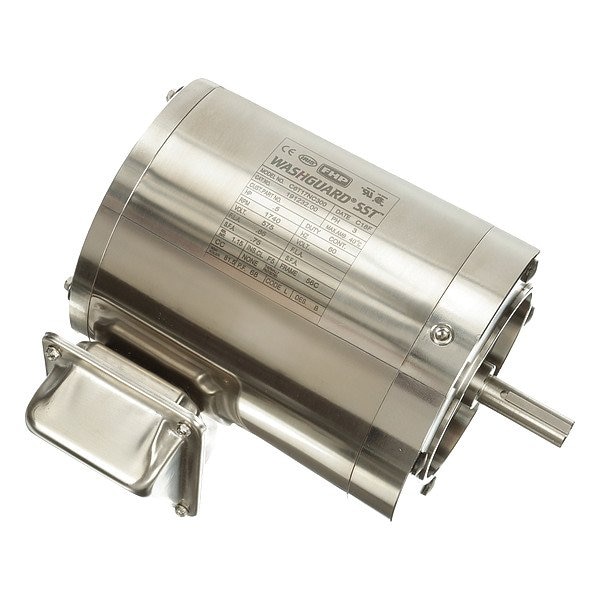

WashdownMotor, 1/2hp, 1740RPM, 56C, 575VAC
Mfr # 191232.00
Zoro # G811930593
product price:Â $1,374.99
/ea
Free Shipping & Returns
Key Features
HP
1/2 hp
Nameplate RPM
1,740 RPM
Shaft Dia.
5/8 in
Voltage
575V AC
Frame
56C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
191232.00
Zoro #
G811930593
UPC #
691720110270
Country of Origin
China
Dimensions
Shaft Dia.
5/8 in
Overall Length
9 3/4 in
Length Less Shaft
7 3/4 in
Shaft Length
1 7/8 in
Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Stud Size
3/8"-16
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 575V AC, Full Load Amps 0.70 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
