Shop CENTURY

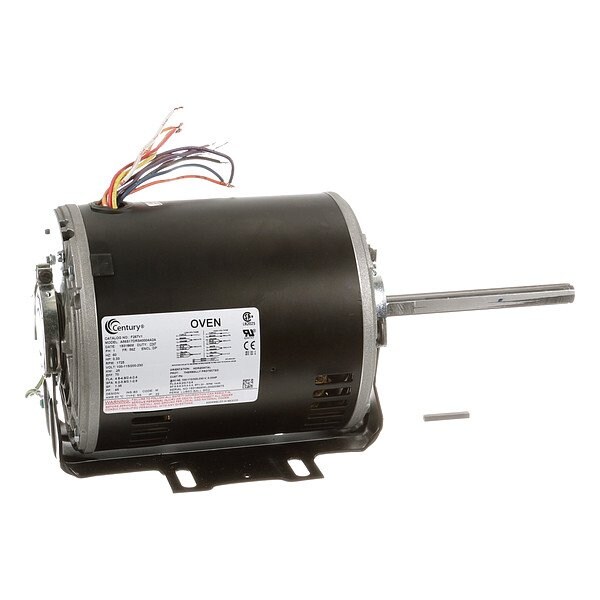

OEM Replacement Motor, 1/3 hp

  • Mfr # F267V1

  • Zoro # G911930776

product price:
$
645.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,725
Shaft Dia.
5/8 in
Voltage
115/230V AC
Frame
56Z
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F267V1
Zoro #
G911930776
UPC #
786674074805
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
15 1/8 in
Shaft Length
15 15/16 in
Length Less Shaft
9 1/16 in
Frame Size
56Z
Shaft Diameter
5/8 in
Wire Rope Length
15 1/8 in
Length
15 1/8 in

Details

HP
1/3
Nameplate RPM
1,725
Item
OEM Replacement Motor
Voltage
115/230V AC
Frame
56Z
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Bearings
Ball
Voltage Compatibility
115V AC, 230V AC
Nominal Efficiency
70 %
Motor Shaft Design
Keyed
Motor Frame Material
Steel
Weight
23 lb
No. of Speeds
1
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Full Load Amps
2.4 A, 4.8 A
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Usable at 200V
Phase
Single
Motor Sub Application
Convection Oven
Motor Application
OEM Replacement
RPM Range
1,701-1,800
Standards
CE, CSA Certified, UL Recognized
Motor Service Factor
1.35
Max. Ambient Temp.
60 Degrees C
Ins. Class
B
Shaft Design
Keyed
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.35
Duty
Continuous
Capacitor Required
Capacitor Included
Compatible Brand
Century
Product Type
OEM Replacement Motor
Insulation Class
B
Full Load Current @ 60 Hz
2.4 A, 4.8 A
Number of Speeds
1
Bearing Type
Ball
Sub Application
Convection Oven
Ambient Temperature - Maximum
60 Degrees C

Description

OEM Replacement Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.4 A, 4.8 A, 56Z Frame, Replacement For Not Applicable, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Frame Material Steel
