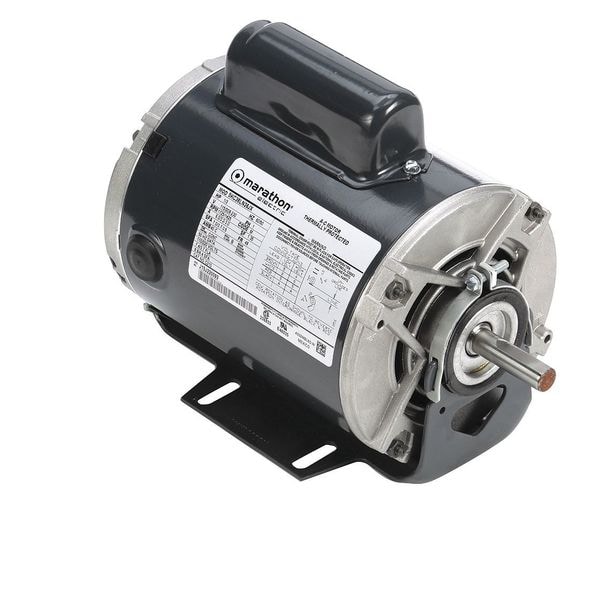

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame

  • Mfr # 5KC36LN26X
  • Zoro # G5743787
product price:
$
364.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC36LN26X
Zoro #
G5743787
UPC #
-
Country of Origin
Multiple

Dimensions

Manufacturers Warranty Length
1 yr
Length Less Shaft
8 1/2 in
Overall Length
10 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Frame Size
48
Shaft Diameter
1/2 in
Wire Rope Length
10 in
Length
10 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
Frame
48
Motor Thermal Protection
Auto
Motor Service Factor
1.35
No. of Speeds
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Duty
Continuous
Phase
Single
Motor Bearings
Ball
RPM Group
1701-1800
Hz
50/60 Hz
Nominal Efficiency
59.5 %
Motor Efficiency Group
Standard Efficient
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Inverter Rated
Not Inverter Rated
Full Load Amps
6.0/3.2-3.0 A
Frame Material
Steel
Usable @ 208V
Usable at 208V
Weight
18 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Capacitor Required
Yes
Full Load Amps @ 50Hz
7.4/3.7 A
Inverter Rating
Not Inverter Rated
Insulation Class
B
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Flat
Number of Speeds
1
Full Load Current @ 60 Hz
6.0/3.2-3.0 A
Full Load Current @ 50 Hz
7.4/3.7 A
Nameplate Service Factor @ 60 Hz
1.35
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
1 yr
Frequency
60/50 Hz
Application
General Purpose
Bearing Type
Ball
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.0/3.2-3.0 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
