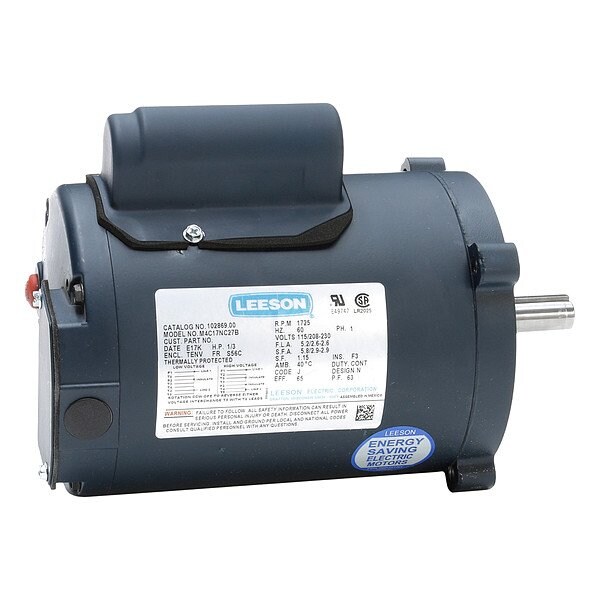

Capacitor-Start General Purpose Motor, 1/3 hp HP, 56C Frame, 115/230V AC Voltage
Mfr # 102869.00
Zoro # G612192015
product price: $425.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
C-Face, Rigid Base
HP
1/3 hp
RPM Range
1725
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
102869.00
Zoro #
G612192015
UPC #
691720326497
Country of Origin
Mexico
Dimensions
Shaft Length
1 7/8 in
Overall Length
10 5/16 in
Shaft Dia.
5/8 in
Length Less Shaft
8 7/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.2/2.6 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Shaft Rotation CCWSE
