Shop LEESON

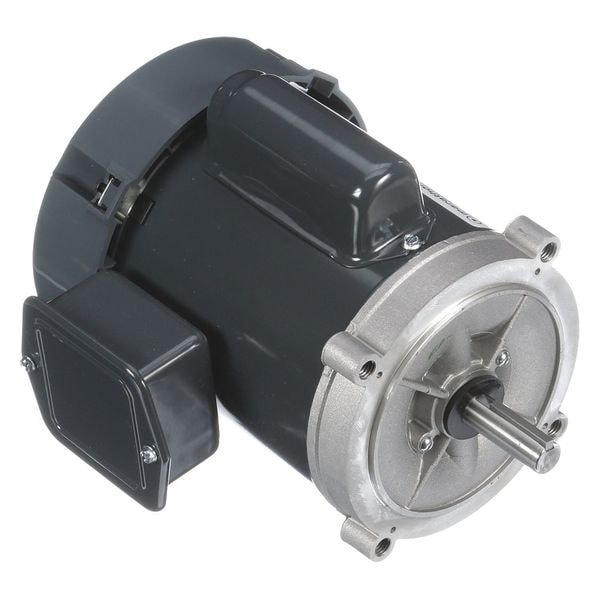

Capacitor-Start General Purpose Motor, 1/3 hp HP, 56C Frame, 115/230V AC Voltage

  • Mfr # 5KC33FN31

  • Zoro # G7515907

product price:  $281.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
HP
1/3 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5KC33FN31
Zoro #
G7515907
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
8 11/16 in
Overall Length
10 9/16 in
Manufacturers Warranty Length
2 yr
Shaft Dia.
5/8 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
HP
1/3 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
56C
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Frame Material
Steel
Full Load Amps
5.6/2.8 A
Duty
Continuous
Motor Bearings
Ball
Phase
Single
Nominal Efficiency
57.5 %
Inverter Rated
Not Inverter Rated
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
RPM Group
3001-3600
Capacitor Required
No
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
14 lb
Usable @ 208V
Not Usable at 208V
Inverter Rating
Not Inverter Rated
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Product Type
General Purpose Motor
Mounting Position
All Angle
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
5.6/2.8 A
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Manufacturers Warranty
2 yr
Number of Speeds
1
Insulation Class
B
Application
General Purpose

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.6/2.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face
