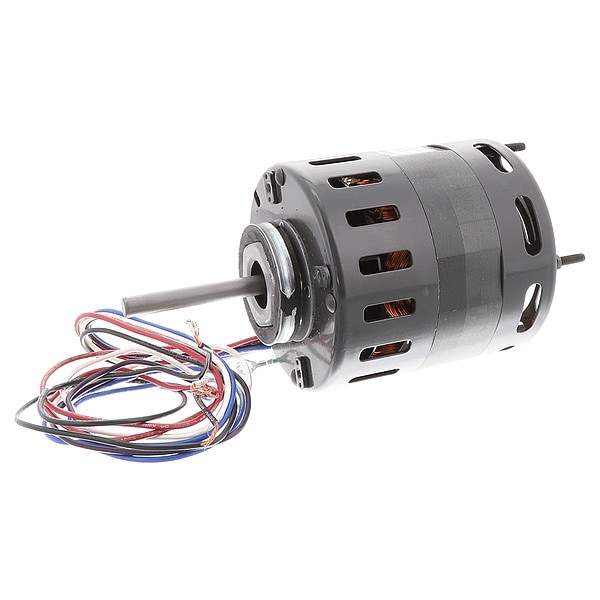

HVAC Motor, 44 Frame, 3/8 in Shaft Dia.

  • Mfr # D481

  • Zoro # G010652494

product price:  $215.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
Phase
Single
HP
1/10
RPM Range
1,501-1,600
No. of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D481
Zoro #
G010652494
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/8 in
Shaft Length
3 5/32 in
Overall Length
8 1/2 in
Body Dia.
4 3/8 in
Length Less Shaft
5 31/32 in
Bolt Circle Dia.
3 15/16 in
Lead Length
31 in
Bolt Circle Diameter
3 15/16 in
Shaft Diameter
3/8 in
Frame Size
4.4
Body Diameter
4.4 in

Details

Item
Refrigeration Motor
Motor Design
Shaded Pole
Phase
Single
HP
1/10
RPM Range
1,501-1,600
No. of Speeds
1
Voltage
115/208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
44
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud, Ring
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,550
Motor Application
HVAC/R
Motor Sub Application
Direct Drive Fan/Blower
Voltage Compatibility
115/208-230V AC
Motor Service Factor
1
Full Load Amps
4.5/2.2 A
Standards
CSA, UL
Motor Bearings
Sleeve
Hz
50 Hz
Ins. Class
A
Motor Shaft Design
Flat
Usable @ 208V
Usable at 208V
HP @ 50Hz
1/10
Mounting Stud Location
4/Opposite Shaft End
Service Factor @ 50Hz
1
RPM @ 50Hz
1,550
Full Load Amps @ 50Hz
4.5/2.2 A
Voltage @ 50Hz
115/208-230V AC
Number of Shafts
1
Usable @ 200V
Not Usable at 200V
Weight
7.6 lb
Wattage
70 W
Bearing Type
Sleeve
Nameplate Voltage @ 50 Hz
115/208-230V AC
Number of Speeds
1
Full Load Current @ 50 Hz
4.5/2.2 A
Sub Application
General Purpose
Nameplate RPM @ 50 Hz
1,550 RPM
Nameplate Horsepower @ 50 Hz
1/10 hp
Full Load Current @ 60 Hz
4.5/2.2 A
Motor Enclosure Type
Open Air Over
Frequency
60/50 Hz
Drive Type
Direct Drive
Nameplate Service Factor @ 50 Hz
1
Product Type
Refrigeration Motor
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Insulation Class
A
Ambient Temperature - Maximum
40 Degrees C

Description

Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.5/2.2 A Full Load Amps, 4.4 Frame, Output Watts 70 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
