Shop FASCO

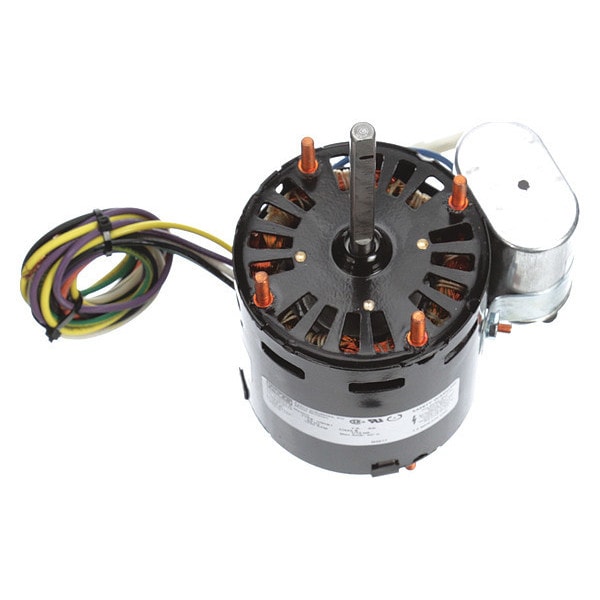

HVAC Motor, 1/12 HP, 1550 rpm, 115/230V, 3.3

  • Mfr # D1127
  • Zoro # G5229427
product price:
$
101.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC, 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/12
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1127
Zoro #
G5229427
UPC #
663001337843
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 1/16 in
Shaft Length
3 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Stud Size
#10-32
Overall Length
6 7/8 in
Lead Length
20 in
Bolt Circle Dia.
2 7/8 in
Shaft Diameter
5/16 in
Bolt Circle Diameter
2 7/8 in
Mounting Stud Thread Size
#10-32
Body Diameter
3.3 in
Frame Size
3.3
Wire Rope Length
6 7/8 in
Length
6 7/8 in

Details

Voltage
115V AC, 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/12
RPM Range
1,501-1,600
Ins. Class
B
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Design
Permanent Split Capacitor
Duty
Continuous
Mounting Stud Location
4/Both Ends
Frame
3.3
Standards
CSA Certified, UL Recognized
Full Load Amps
1.1/0.60 A
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Includes
7.5 MFD 370VAC Capacitor
Motor Shaft Design
Flat
Capacitor Required
Capacitor Included
Motor Mounting Type
Ring/Stud
Number of Shafts
1
No. of Speeds
1
Phase
Single
Stud/Base Mtg. Pattern
2-7/8 in
Motor Application
HVAC/R
Motor Service Factor
1
Item
OEM Replacement Motor
Mounting Pattern
2-7/8
Motor Sub Application
OEM Replacement
Application
HVAC/R
Hz
60 Hz
Motor Mounting Position
All Angle
Mounting Holes
(8) #10-32
Mounting Stud Pattern
2 7/8 in
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Weight
4 lb
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F3
Mounting
Stud
Sub Application
General Purpose
Shaft Design
Flat
Full Load Current @ 60 Hz
1.1/0.60 A
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Frame Material
Steel
Wattage
60 W
Bearing Type
Sleeve
Product Type
OEM Replacement Motor

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/12 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/230V AC, 1.1/0.60 A Full Load Amps, 3.3 Frame, Output Watts 60 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
