Shop LEESON

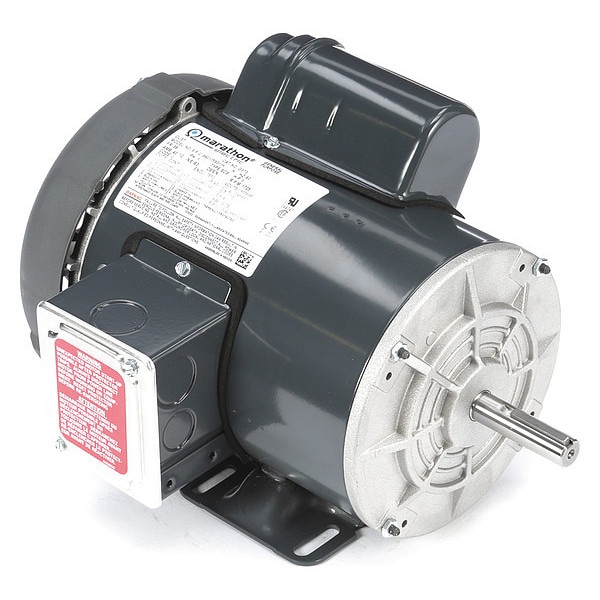

Capacitor-Start Pressure Washer Motor, 1 hp HP, 115/208-230V AC Voltage, 56 Frame

  • Mfr # 056C17F5311
  • Zoro # G5665493
product price:
$
487.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056C17F5311
Zoro #
G5665493
UPC #
-
Country of Origin
Multiple

Dimensions

Length Less Shaft
10 1/2 in
Shaft Dia.
5/8 in
Shaft Length
2 3/8 in
Overall Length
12 13/16 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Frame Size
56
Body Diameter
7.4 in

Details

Item
Pressure Washer Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
Frame
56
Motor Thermal Protection
Manual
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Application
Pressure Washer
Nameplate RPM
1,725
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CE, CSA, UL Recognized
Phase
Single
Duty
Continuous
Ins. Class
B
Inverter Rated
Not Inverter Rated
Nominal Efficiency
72 %
Full Load Amps
13.4/6.8-6.7 A
Hz
60 Hz
Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Motor Bearings
Ball
RPM Group
1701-1800
Usable @ 200V
Not Usable at 200V
Weight
32 lb
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Capacitor Required
No
Ambient Temperature
104 Degrees F
Product Type
Pump Motor
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
13.4/6.8-6.7 A
Sub Application
Pressure Washer
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Number of Wires
9
Frequency
60 Hz
Number of Speeds
1
Manufacturers Warranty
1 yr
Application
Pump

Description

Pressure Washer Motor, Duty Cycle Continuous, Frame 56, Hz 60 Hz, Full Load Amps 13.4/6.8-6.7 A, HP 1 hp, Ins. Class B, Inverter Rated Not Inverter Rated, Length Less Shaft 10 1/2 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 104 Degrees F, Motor Application Pressure Washer, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel
