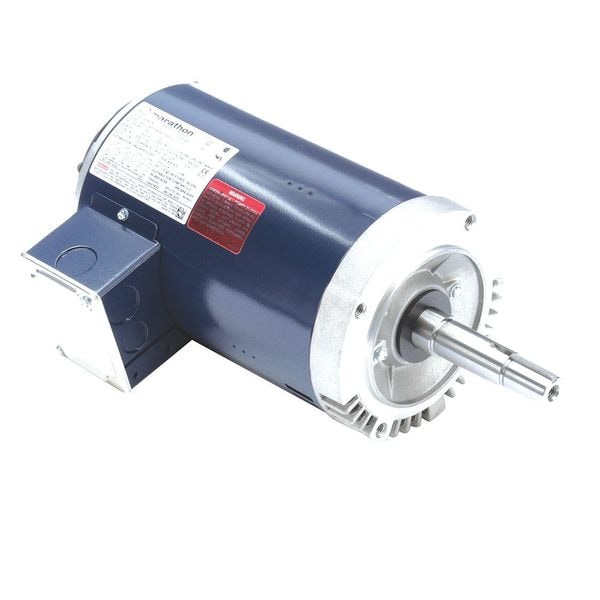

Close-Coupled Pump Motor, 3 HP, 7.6/3.8A

  • Mfr # 145TTDR16305
  • Zoro # G6421759
product price:
$
817.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3 hp
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145TTDR16305
Zoro #
G6421759
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
15 7/16 in
Length Less Shaft
11 3/16 in
Shaft Length
4 1/4 in
Shaft Dia.
7/8 in
Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Body Diameter
6.5 in
Shaft Diameter
7/8 in
Frame Size
145JMV
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
15 7/16 in
Length
15 7/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
3 hp
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230V AC, 460V AC
Frame
145JMV
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Bearings
Ball
Phase
Three
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Inverter Rated
Inverter Rated
Motor Shaft Design
Keyed, Threaded
Motor Sub Application
Close-Coupled Pump
Nominal Efficiency
87.5 %
Motor Efficiency Group
NEMA Premium Efficient
Ins. Class
F
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Full Load Amps
7.6/3.8 A
Frame Material
Steel
Motor Frame Material
Steel
Duty
Continuous
Standards
CE Mark, CSA Certified, UL Recognized
Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
CC Number
CC003A
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Drip Cover
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal, Vertical Shaft Down
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
47 lb
Conduit Box Location
Exterior
Conduit Box Position
F1
NEMA Design
B
No. of Speeds
1
Full Load Current @ 60 Hz
7.6/3.8 A
Constant Torque Rating
2:1 Constant Torque
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
NEMA Design Class
B
Application
Pump
Number of Speeds
1
Product Type
Pump Motor
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Number of Wires
9
Efficiency Rating
Premium Efficiency (IE3)
Shaft Thread Type
JM
Insulation Class
F
Mounting Position
Horizontal/Vertical Shaft Down
Frequency
60 Hz

Description

Close-Coupled Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 145JMV, Hz 60 Hz, Full Load Amps 7.6/3.8, HP 3, Includes Drip Cover, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 11 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
