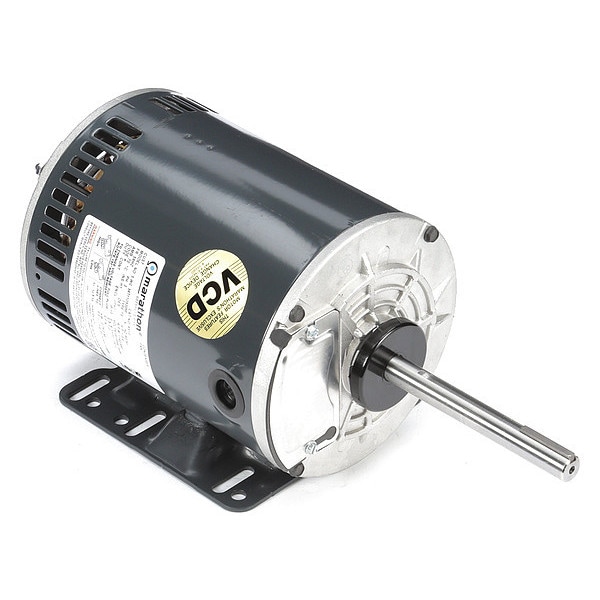

Condenser Fan Motor, 1 hp

  • Mfr # 056T11O5305
  • Zoro # G5657504
product price:
$
546.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11O5305
Zoro #
G5657504
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Body Dia.
6 1/2 in
Overall Length
14 11/16 in
Length Less Shaft
9 11/16 in
Body Diameter
6.5 in
Frame Size
56HZ
Shaft Diameter
5/8 in
Wire Rope Length
14 11/16 in
Length
14 11/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band/Stud
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Ins. Class
H
Motor Service Factor
1
Hz
50/60 Hz
Motor Shaft Design
Keyed with Single Flat
Motor Bearings
Ball
Application
Condenser Fan
Duty
Continuous
Nominal Efficiency
75.5 %
Full Load Amps
4.1-4.2/2.1 A
Standards
CSA Certified (LR2025), UL Recognized
Features
Combination Base With 12 Mounting Holes, Shaft Slinger, Threaded Lead Exit
Duty Cycle
Continuous
Voltage @ 50Hz
208-230/460V AC
Full Load Amps @ 50Hz
4.1-4.2/2.1 A
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Conduit Box Position
F1
RPM @ 50Hz
1,140
Usable @ 200V
Not Usable at 200V
Output Watts
750 W
Weight
29 lb
Conduit Box Location
Exterior
HP @ 50Hz
1
Service Factor @ 50Hz
1
Mounting
Rigid Base
Frequency
60/50 Hz
Nameplate Service Factor @ 50 Hz
1
Full Load Current @ 60 Hz
4.1-4.2/2.1 A
Number of Speeds
1
Nameplate Voltage @ 50 Hz
208-230/460V AC
Ambient Temperature - Maximum
70 Degrees C
Wattage
750 W
Insulation Class
H
Full Load Current @ 50 Hz
4.1-4.2/2.1 A
Sub Application
Condenser Fan
Shaft Design
Non-Standard
Nameplate Horsepower @ 50 Hz
1 hp
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Mounting Position
Horizontal/Vertical Shaft Up
Drive Type
Direct Drive
Frame Material
Steel
Capacitor Required
Capacitor Not Required
Motor Enclosure Type
Open Air Over
Nameplate RPM @ 50 Hz
1,140 RPM

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.1-4.2/2.1 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
