Shop LEESON

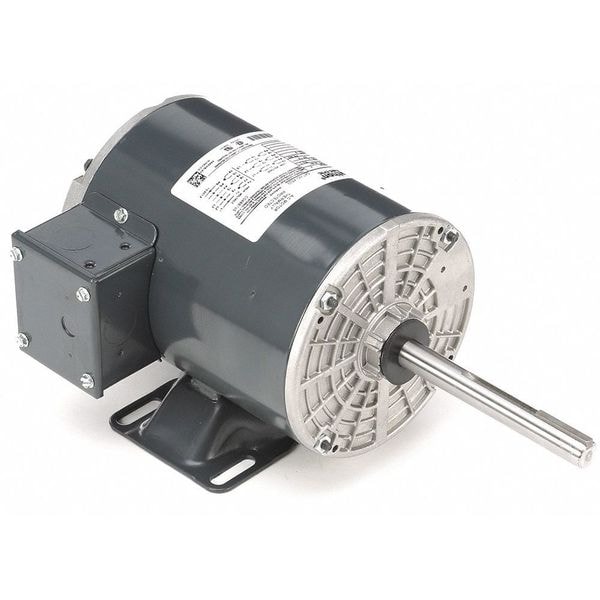

Condenser Fan Motor, 1/2 hp

  • Mfr # 056T11O11002
  • Zoro # G7580422
product price:
$
454.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
056T11O11002
Zoro #
G7580422
UPC #
-
Country of Origin
Multiple
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Z
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Service Factor
1
Motor Bearings
Ball
Full Load Amps
2.1-2.0/1.0 A
Standards
CSA Certified (LR2025), UL Recognized
Motor Shaft Design
Keyed with Single Flat
Application
Condenser Fan
Ins. Class
B
Hz
50/60 Hz
Duty
Continuous
Nominal Efficiency
74 %
Features
Shaft Slinger, Threaded Lead Exit
Motor Frame Material
Steel
Service Factor @ 50Hz
1
Weight
20 lb
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Output Watts
370 W
Voltage @ 50Hz
208-230/460V AC
Conduit Box Position
F1
HP @ 50Hz
1/2
RPM @ 50Hz
1,140
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Full Load Amps @ 50Hz
2.1-2.0/1.0 A
Mounting
Rigid Base
Nameplate Voltage @ 50 Hz
208-230/460V AC
Frame Material
Steel
Frequency
60/50 Hz
Sub Application
Condenser Fan
Nameplate Horsepower @ 50 Hz
1/2 hp
Wattage
370 W
Bearing Type
Ball
Ambient Temperature - Maximum
60 Degrees C
Mounting Position
Horizontal/Vertical Shaft Up
Full Load Current @ 60 Hz
2.1-2.0/1.0 A
Drive Type
Direct Drive
Capacitor Required
Capacitor Not Required
Number of Speeds
1
Insulation Class
B
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Full Load Current @ 50 Hz
2.1-2.0/1.0 A
Nameplate Service Factor @ 50 Hz
1
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1
Nameplate RPM @ 50 Hz
1,140 RPM

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.1-2.0/1.0 A Full Load Amps, 56Z Frame, Output Watts 370 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
