Shop LEESON

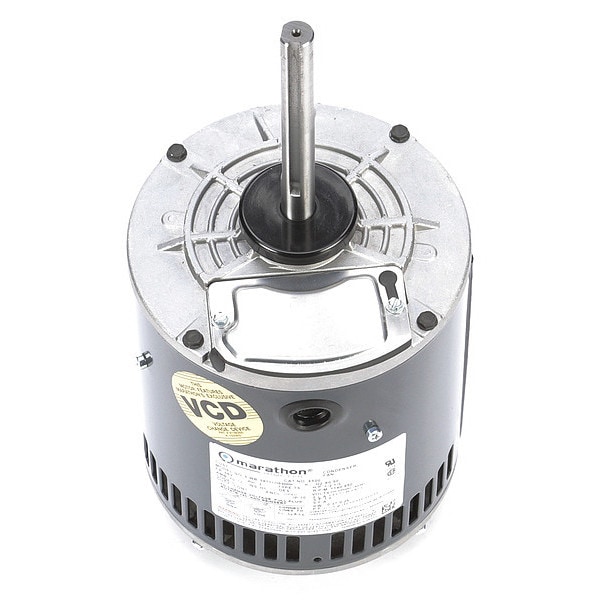

Condenser Fan Motor, 1/2 hp

  • Mfr # 056T11O5300
  • Zoro # G7249547
product price:
$
358.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11O5300
Zoro #
G7249547
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Manufacturers Warranty Length
1 yr
Body Dia.
6 1/2 in
Length Less Shaft
9 1/16 in
Overall Length
14 1/16 in
Frame Size
56Y
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Wire Rope Length
14 1/16 in
Length
14 1/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band/Stud
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC
Features
(4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes
Nominal Efficiency
68 %
Motor Bearings
Ball
Motor Shaft Design
Keyed with Single Flat
Application
Condenser Fan
Full Load Amps
2.4-2.7/1.4 A
Motor Service Factor
1
Capacitor Required
Capacitor Not Required
Duty
Continuous
Hz
50/60 Hz
Ins. Class
B
Standards
CSA Certified (LR2025), UL Recognized
Conduit Box Location
Exterior
Output Watts
370 W
Duty Cycle
Continuous
Full Load Amps @ 50Hz
2.4-2.7/1.4 A
Service Factor @ 50Hz
1
RPM @ 50Hz
1,140
Usable @ 200V
Usable at 200V
Usable @ 208V
Usable at 208V
HP @ 50Hz
1/2
Voltage @ 50Hz
200-230/460V AC
Conduit Box Position
F1
Removable Base
No
Weight
20 lb
Motor Frame Material
Steel
Mounting Position
Horizontal/Vertical Shaft Up
Nameplate Horsepower @ 50 Hz
1/2 hp
Frame Material
Steel
Full Load Current @ 60 Hz
2.4-2.7/1.4 A
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Nameplate Voltage @ 50 Hz
200-230/460V AC
Shaft Design
Keyed
Number of Speeds
1
Nameplate Service Factor @ 50 Hz
1
Sub Application
Condenser Fan
Bearing Type
Ball
Frequency
60/50 Hz
Manufacturers Warranty
1 yr
Full Load Current @ 50 Hz
2.4-2.7/1.4 A
Ambient Temperature - Maximum
70 Degrees C
Insulation Class
B
Wattage
370 W
Drive Type
Direct Drive
Nameplate RPM @ 50 Hz
1,140 RPM
Nameplate Service Factor @ 60 Hz
1

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.4-2.7/1.4 A Full Load Amps, 56Y Frame, Output Watts 370 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
