Shop LEESON

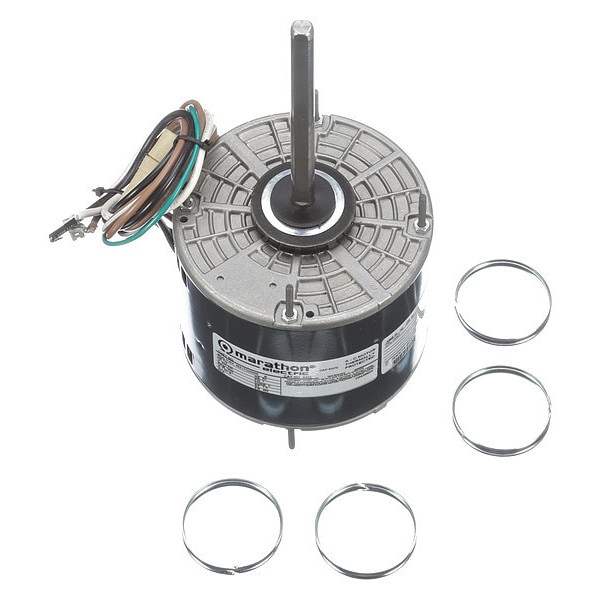

Condenser Fan Motor, 1/4 hp

  • Mfr # 048A17O2006
  • Zoro # G1898541
product price:
$
170.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,601-1,700
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048A17O2006
Zoro #
G1898541
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
6 in
Body Dia.
5 11/16 in
Lead Length
30 in
Overall Length
12 in
Bolt Circle Dia.
1 in
Stud Size
6 1/2 in
Length Less Shaft
6 in
Resilient Ring Dia.
2 1/4 in
Resilient Ring Diameter
2 1/4 in
Shaft Diameter
1/2 in
Bolt Circle Diameter
1 in
Frame Size
48Z
Body Diameter
5.7 in
Wire Rope Length
12 in
Length
12 in

Details

Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,601-1,700
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Z
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,625
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Features
Shaft Slinger, Shaft With Flat, Thru Bolt, Weather Resistant Reversing Plug
Capacitor Required
Capacitor Included
Nominal Efficiency
70 %
Application
Fan/Blower
Motor Shaft Design
Flat
Duty
Continuous
Ring to Ring Center
6 5/8 in
Full Load Amps
1.9-1.8 A
Standards
CSA Certified, UL Recognized
Ins. Class
B
Hz
60 Hz
Stud Quantity
4
Motor Bearings
Ball
Motor Service Factor
1
Usable @ 200V
Not Usable at 200V
Extended Thru-Bolts
Yes
Motor Frame Material
Steel
Removable Base
No
Conduit Box Position
F1
Output Watts
190 W
Conduit Box Location
Exterior
Weight
12 lb
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Mounting Position
Horizontal/Vertical Shaft Up
Wattage
190 W
Number of Speeds
1
Full Load Current @ 60 Hz
1.9-1.8 A
Shaft Design
Flat
Frequency
60 Hz
Sub Application
Condenser Fan
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over
Bearing Type
Ball
Insulation Class
B
Frame Material
Steel

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.9-1.8 A Full Load Amps, 48Z Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
