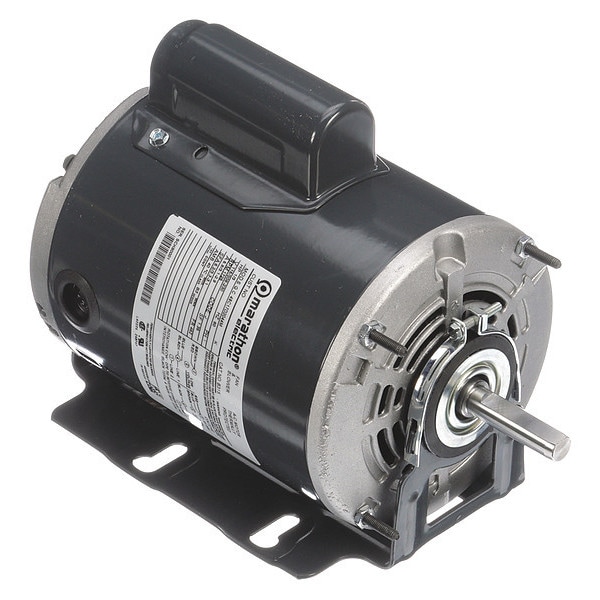

Condenser Fan Motor, 1/3 HP, 48Z Frame

  • Mfr # 048C17D2044

  • Zoro # G7346512

product price:
$
224.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048C17D2044
Zoro #
G7346512
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 7/8 in
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
8 1/4 in
Body Dia.
5 5/8 in
Manufacturers Warranty Length
1 yr
Stud Size
#10-32
Overall Length
10 1/4 in
Bolt Circle Dia.
5-1/8"
Frame Size
48Z
Shaft Diameter
1/2 in
Resilient Ring Diameter
2 1/4 in
Body Diameter
5.6 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115/208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Z
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Ring to Ring Center
7 7/8 in
Motor Shaft Design
Flat
Hz
60 Hz
Capacitor Required
Capacitor Included
Full Load Amps
5.8/3.1-2.9 A
Stud Quantity
4
Motor Bearings
Ball
Standards
CSA (LR2025), UL (E6312)
Nominal Efficiency
64 %
Ins. Class
B
Duty
Continuous
Application
Fan/Blower
Motor Service Factor
1.35
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Usable @ 200V
No
Duty Cycle
Continuous
Motor Frame Material
Steel
Weight
17 lb
Usable @ 208V
Yes
Insulation Class
B
Bearing Type
Ball
Full Load Current @ 60 Hz
5.8/3.1-2.9 A
Shaft Design
Flat
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.35
Drive Type
Belt Drive
Number of Speeds
1
Manufacturers Warranty
1 yr
Product Type
Fan and Blower Motor
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Mounting Position
Horizontal

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 5.8/3.1-2.9 A Full Load Amps, 48Z Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
