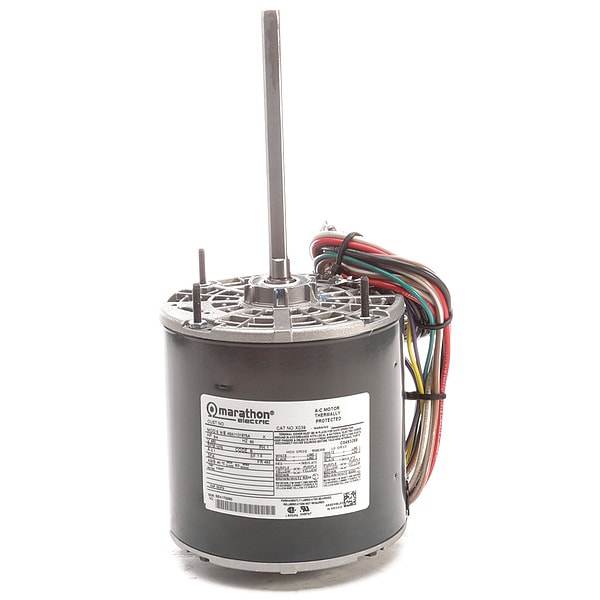

Condenser Fan Motor, 3/4 HP, 48Z Frame
Mfr # 048A11O1875
Zoro # G7256057
product price: $286.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
048A11O1875
Zoro #
G7256057
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1/2 in
Shaft Length
6 1/16 in
Lead Length
27 in
Length Less Shaft
6 3/8 in
Overall Length
12 7/16 in
Body Dia.
5 11/16 in
Manufacturers Warranty Length
1 yr
Stud Size
#10-32
Bolt Circle Dia.
5 1/8 in
Description
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 460V AC, 2.1 A Full Load Amps, 48Z Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
