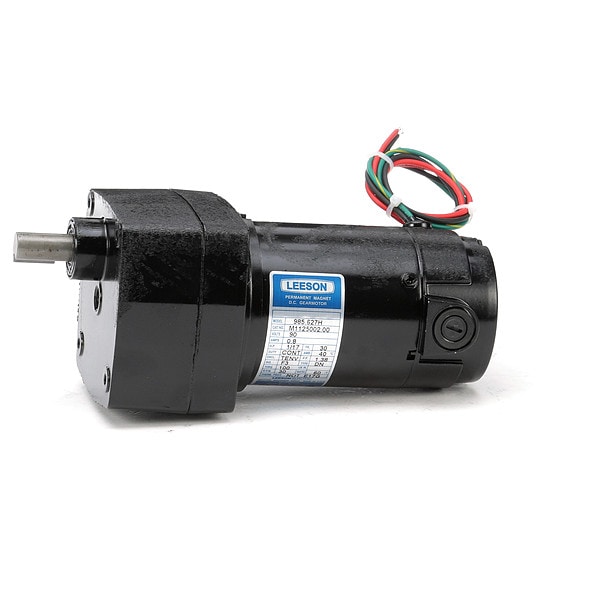

Leeson DC Gearmotor, 100 in-lb Max. Torque, 30 RPM Nameplate RPM, 90/180 V Voltage M1125002.00 - main

DC Gearmotor, 100 in-lb Max. Torque, 30 RPM Nameplate RPM, 90/180 V Voltage

  • Mfr # M1125002.00

  • Zoro # G605687221

product price:  $588.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
90/180 V
Gearmotor Type
DC Gearmotor
Max. Torque
100 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
Gearmotor Shaft Orientation
Parallel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M1125002.00
Zoro #
G605687221
UPC #
691720090909
Country of Origin
United States

Dimensions

Length Less Shaft
7.18 in
Dimension X
2.68 in
Shaft Dia. (Dimension U)
1/2 in
Overall Length
8.74 in
Mount Hole Center-to-Center Width
3.75 in
Output Shaft Height
3 in
Output Shaft Length
1 in
Keyway Length
3/4 in
Mount Hole Center-to-Center Length
1.88 in
Keyway Width
1/8 in
Overall Height
3.98 in
Keyway Depth
3/4 in
Output Shaft Diameter
1/2 in
Overall Width
3.75 in

Details

Item
DC Gearmotor
Gearmotor Voltage
90/180 V
Gearmotor Type
DC Gearmotor
Max. Torque
100 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
30 RPM
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Rotation
CW/CCW
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
0.8 A
Standards
CE, CSA, UL
Input HP
1/17 hp
Service Factor
1
Reversible Shaft Output
Yes
Insulation Class
F
Duty Cycle
Continuous
Application
Power Transmission
Overhung Load
155 lb
Bearings
Needle
Gears
Helical Gear, Spur Gear
Rotation
CW/CCW
Lubrication
Semi-Fluid Grease
Gear Ratio
60:1
Motor Type
Permanent Magnet DC
Max. Ambient Temp.
40 Degrees C
Gear Material
Steel
Shaft Orientation
Parallel
Thermal Protection
None
Gear Type
Helical, Spur
Output Location
Left Hand
Output Shaft Type
Hollow
Motor Insulation Class
F
Mount Type
Horizontal or Vertical Shaft Down
Mounting Orientation
Horizontal, Vertical with Shaft Down
Features
Performance matched for continuous duty.Output shafts have needle bearings to handle high load capacities.Lubrication is permanent semi-fluid grease, reducing possibility of leakage.Precision machined in-line steel gears.Optional conduit box and PZ gearmotor mounting brackets available
Motor Duty Class
Continuous
Motor Enclosure
Totally Enclosed Nonventilated
Efficiency
55.1 %
Bearing Type
Needle
Maximum Output Speed
30 RPM
Maximum Ambient Temperature
104 Degrees F
Overhung Load Capacity
155 lb
Maximum Torque
100 in-lb
Nameplate Speed
30 RPM
Number of Output Shafts
1
Operating Voltage
90V DC
Input Horsepower
59/1000 hp
Full Load Current
0.8 A
Motor Frame Designation
30

Description

DC Gearmotor, Shaft Orientation Parallel, Output Location Left Hand, Output Shaft Type Hollow, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 30 RPM, Maximum Torque 100 in-lb, Overhung Load Capacity 155 lb, Rotation CW/CCW, Motor Frame Designation 30, Output Shaft Height 3 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Gear Ratio 60:1, Input Horsepower 59/1000 hp, Motor Insulation Class F
