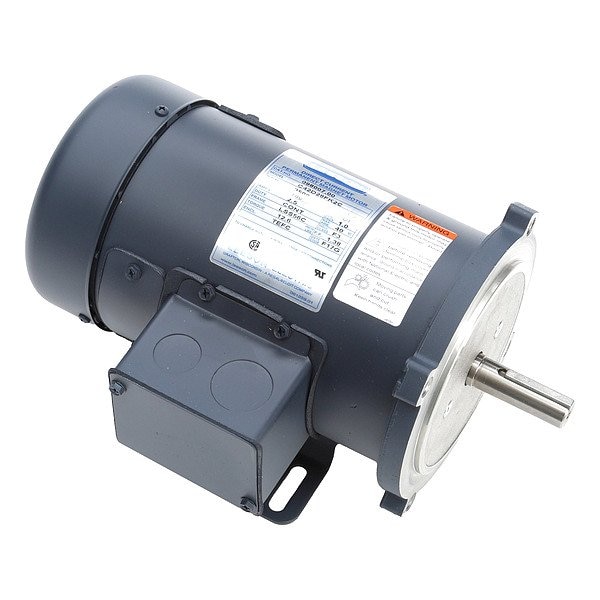

DC Permanent Magnet Motor
- Mfr # 098007.00
- Zoro # G911929831
product price:Â
$
685.99
/ea
Free Shipping & Returns
Key Features
HP
1/2
Nameplate RPM
2,500 RPM
Shaft Dia.
5/8 in
Voltage
180V DC
Frame
SS56C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 098007.00
- Zoro #
- G911929831
- UPC #
- 691720000984
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 5/8 in
- Shaft Length
- 2 1/16 in
- Overall Length
- 10 13/16 in
- Length Less Shaft
- 8 3/4 in
- Bolt Circle Dia.
- 5 7/8 in
- Stud Size
- 3/8"-16
- Shaft Diameter
- 5/8 in
- Bolt Circle Diameter
- 5 7/8 in
- Mounting Stud Thread Size
- 3/8"-16
- Wire Rope Length
- 10 13/16 in
- Length
- 10 13/16 in
Description
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/2 HP, Nameplate RPM 2,500 RPM, Voltage 180V DC, 2.5 A Full Load Amps, SS56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Shaft Length 2 1/16 in, Motor Shaft Design Keyed
