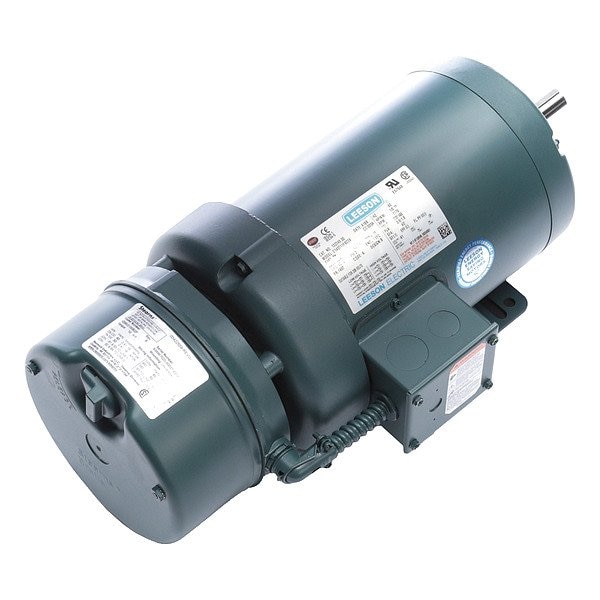

BrakeMotor, 1hp, 1170RPM, 208-230/460VAC

  • Mfr # 122245.00

  • Zoro # G411930870

product price:
$
2,344.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Nameplate RPM
1,170 RPM
Shaft Dia.
7/8 in
Voltage
208-230/460V AC
Frame
145T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122245.00
Zoro #
G411930870
UPC #
691720098653
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
15 15/16 in
Shaft Length
2 1/4 in
Overall Length
18 1/8 in
Frame Size
145T
Shaft Diameter
7/8 in
Wire Rope Length
18 1/8 in
Length
18 1/8 in

Details

HP
1 hp
Nameplate RPM
1,170 RPM
Item
Brake Motor
Voltage
208-230/460V AC
Frame
145T
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Thermal Protection
None
Voltage Compatibility
230V AC, 460V AC
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Weight
48.6 lb
Motor Mounting Type
Rigid Base
Nominal Efficiency
82.5 %
Hz
60 Hz
Conduit Box Position
F1
Full Load Amps
1.9 A
Duty Cycle
Continuous
Motor Frame Material
Steel
Ins. Class
F
Phase
Three
Standards
CE, CSA, UL Listed
Motor Bearings
Ball
RPM Range
1,101-1,200
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Usable @ 208V
Usable at 208V
No. of Speeds
1
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Brake Rating
10 ft-lb
Inverter Rating
Not Inverter Rated
Inverter Rated
Not Inverter Rated
Shaft Design
Keyed
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Bearing Type
Ball
Application
General Purpose
Full Load Current @ 60 Hz
1.9 A
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Brake Torque
10 ft-lb
Mounting Position
Horizontal
Product Type
Brake Motor
Insulation Class
F

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,170 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.9 A Full Load Amps, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
