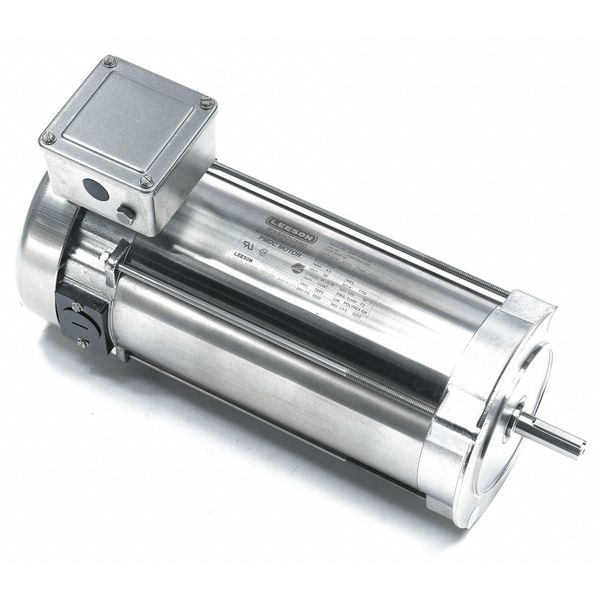

DC Washdown Motor, 9.5A, 90VDC, 16-3/8 in L

  • Mfr # 109088.00

  • Zoro # G5106081

product price:  $1,619.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet
Phase
Single
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
109088.00
Zoro #
G5106081
UPC #
691720343135
Country of Origin
United States

Dimensions

Body Dia.
6.5 in
Overall Length
16 3/8 in
Shaft Dia.
5/8 in
Length Less Shaft
14 7/16 in
Shaft Length
2 1/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.5 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
RPM Group
1701-1800
Voltage Compatibility
90V DC
Standards
CSA Certified, UL Recognized
Full Load Torque
36.0 in-lb
Bearings
Ball
Nameplate RPM
1,750 RPM
Max. Ambient Temp.
40 Degrees C
Ins. Class
F
Rotation
CW/CCW
Brush Type
Carbon
Motor Mounting Type
Face
Full Load Amps
9.5 A
Motor Application
Washdown
Motor Bearings
Ball
Nominal Efficiency
81.6 %
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCW, CW
Weight
59 lb
Usable @ 200V
No
Usable @ 208V
No
No. of Speeds
1
Duty Cycle
Continuous
Conduit Box Location
Exterior
Conduit Box Position
F3
Series
Washguard
Shaft Design
Keyed
Insulation Class
F
Nameplate Voltage
90V DC
Frame Finish
Unfinished
Nameplate Service Factor
1
Application
Washdown
Full Load Current
9.5 A
Frame Material
Stainless Steel
Number of Speeds
1
Manufacturers Warranty
1 yr
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
DC Washdown Motor

Description

DC Washdown Motor,1 HP,1750,56C,90V
