  11. DC Washdown Motor, 3/4 HP, 14-7/8 in. L

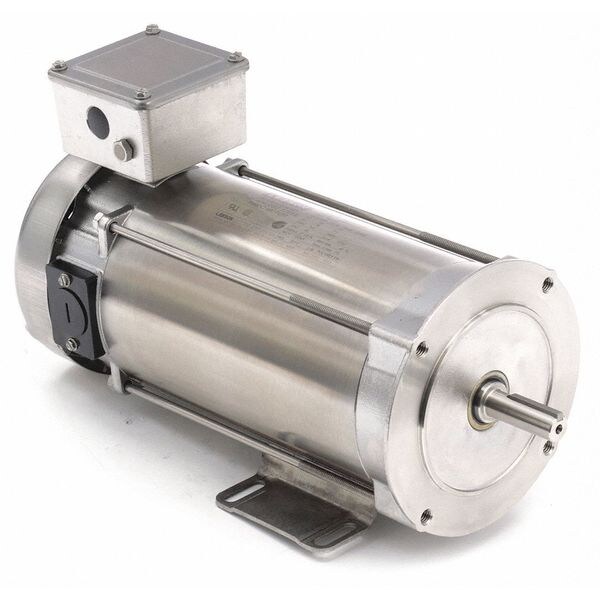

Leeson DC Washdown Motor, 3/4 HP, 14-7/8 in. L 109072.00 - main

DC Washdown Motor, 3/4 HP, 14-7/8 in. L

  • Mfr # 109072.00

  • Zoro # G5423750

product price: $1,502.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet DC
Phase
Single
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
109072.00
Zoro #
G5423750
UPC #
691720342978
Country of Origin
United States

Dimensions

Shaft Length
2 1/16 in
Shaft Dia.
5/8 in
Overall Length
15 3/8 in
Length Less Shaft
13 7/16 in
Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet DC
Phase
Single
HP
3/4
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
RPM Group
1701-1800
Bearings
Ball
Rotation
CW/CCW
Nameplate RPM
1,750
Full Load Torque
27.0 in-lb
Standards
CSA Certified, UL Recognized
Motor Application
Washdown
Voltage Compatibility
90V DC
Full Load Amps
7.5 A
Brush Type
Carbon
Motor Mounting Type
Face/Base
Motor Service Factor
1
Nominal Efficiency
86.2 %
Motor Shaft Design
Keyed
Motor Bearings
Ball
Inverter Rated
Yes
Motor Shaft Rotation
CCW, CW
Duty Cycle
Continuous
Usable @ 208V
No
No. of Speeds
1
Weight
54 lb
Conduit Box Location
Exterior
Usable @ 200V
No
Conduit Box Position
F3
Series
Washguard

Description

DC Washdown Motor,3/4 HP,1750,56C,90V
