Shop LEESON

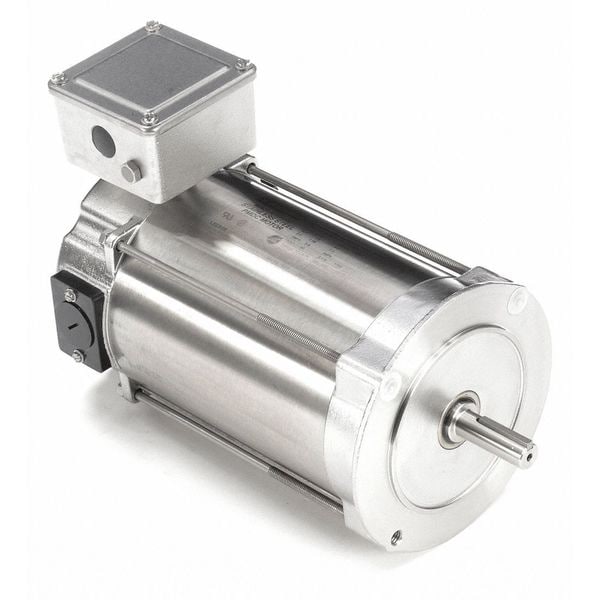

DC Washdown Motor, 3.8A, 12-13/16 in. L

  • Mfr # 109079.00

  • Zoro # G4447935

product price:  $1,110.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet
Phase
Single
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
109079.00
Zoro #
G4447935
UPC #
691720343043
Country of Origin
United States

Dimensions

Shaft Length
2 1/16 in
Length Less Shaft
10 7/8 in
Overall Length
12 13/16 in
Shaft Dia.
5/8 in
Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56C
Bolt Circle Diameter
5 7/8 in

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet
Phase
Single
HP
1/3
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Nonventilated
Standards
BISSC Approved, CSA Certified, UL Recognized
Motor Application
Washdown
Brush Type
Carbon
Motor Mounting Type
Face
Rotation
CW/CCW
Full Load Torque
12.0 in-lb
Full Load Amps
3.8 A
Voltage Compatibility
90V DC
RPM Group
1701-1800
Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Ins. Class
F
Nameplate RPM
1,750 RPM
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
Motor Service Factor
1
Shaft Material
Stainless Steel
Motor Shaft Design
Keyed
Motor Bearings
Ball
Motor Shaft Rotation
CCW, CW
Nominal Efficiency
74 %
Usable @ 200V
No
Duty Cycle
Continuous
Usable @ 208V
No
No. of Speeds
1
Weight
44 lb
Conduit Box Location
Exterior
Conduit Box Position
F3
Series
Washguard
Frame Material
Stainless Steel
Frame Finish
Unfinished
Application
Washdown
Insulation Class
F
Nameplate Voltage
90V DC
Manufacturers Warranty
1 yr
Bearing Type
Ball
Nameplate Service Factor
1
Product Type
DC Washdown Motor
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Number of Speeds
1
Full Load Current
3.8 A

Description

DC Washdown Motor,1/3 HP,1750,56C,90V
