Shop LEESON

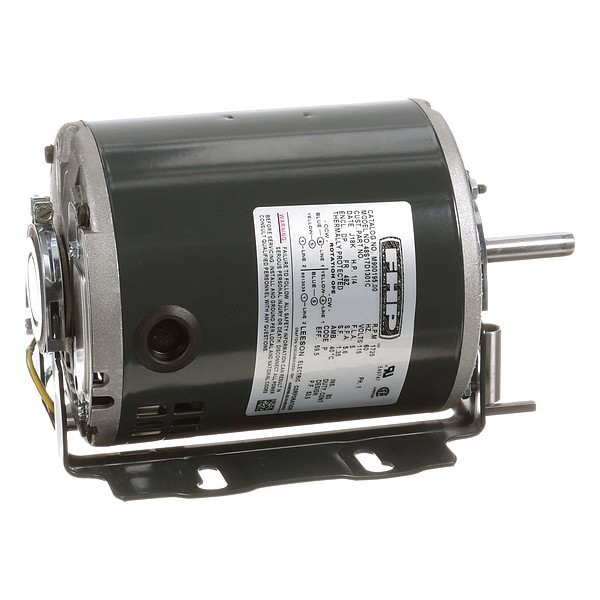

Direct Drive Blower Motor, 1/4 hp

  • Mfr # M900195.00

  • Zoro # G612190431

product price:  $244.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1,725
Voltage
115V AC
Frame
48Z
Shaft Dia.
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
M900195.00
Zoro #
G612190431
UPC #
691720266083
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 7/8 in
Body Dia.
5 5/8 in
Overall Length
9 23/32 in
Length Less Shaft
7 27/32 in
Frame Size
48Z
Shaft Diameter
1/2 in
Body Diameter
5.6 in

Details

HP
1/4
Nameplate RPM
1,725
Voltage
115V AC
Frame
48Z
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Voltage Compatibility
115V AC
Motor Design
Split-Phase
Motor Thermal Protection
Auto
Motor Mounting Position
Horizontal
Ins. Class
B
Nominal Efficiency
59.5 %
Motor Enclosure Design
Open Dripproof
Motor Application
Blower; Fan
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Phase
Single
No. of Speeds
1
Duty
Continuous
Motor Mounting Type
Resilient Base
Item
Direct Drive Blower Motor
Full Load Amps
5.0 A
Standards
CSA Certified, UL Listed
Motor Bearings
Ball
Motor Service Factor
1.35
Mounting Position
Horizontal
Frame Material
Steel
Shaft Design
Keyed
Capacitor Required
Capacitor Not Required
Drive Type
Belt Drive
Insulation Class
B
Wattage
0.19 kW
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.35
Number of Speeds
1
Bearing Type
Ball
Weight
13 lb
Full Load Current @ 60 Hz
5.0 A
Product Type
Fan and Blower Motor
Sub Application
General Purpose
Application
Fan/Blower

Description

Direct Drive Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 5.0 A Full Load Amps, 48Z Frame, Output Watts 0.19 kW, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
