  6. Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

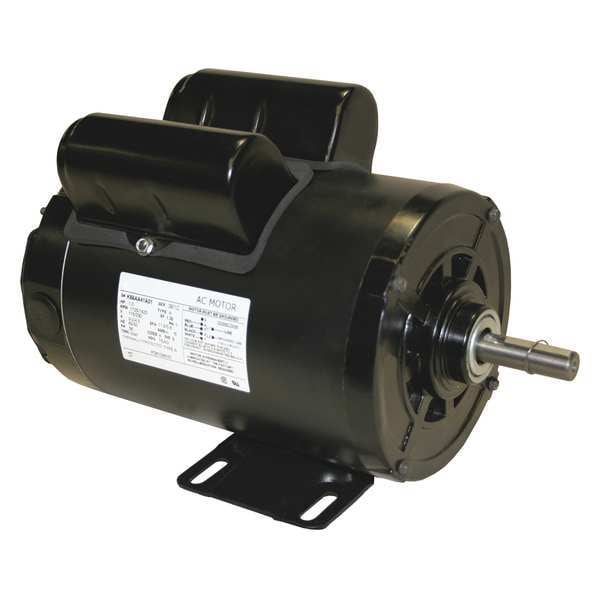

Century Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame PD6104AV3 - main

Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

  • Mfr # PD6104AV3

  • Zoro # G1664905

product price:  $358.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PD6104AV3
Zoro #
G1664905
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 13/16 in
Overall Length
12 13/16 in
Shaft Length
2 in
Shaft Dia.
5/8 in

Details

Item
Agricultural Fan Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Service Factor
1.3
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
Belt Drive Fan/Blower
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Recognized
Includes
Gasketed Wiring Compartment Cover
Hz
60/50 Hz
Frame Material
Rolled steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Full Load Amps
9.0/4.5 A
Capacitor Required
Yes
Item - Farm Duty Motors
Agricultural Fan Motor
Motor Bearings
Ball
Finish
Enamel
Duty
Continuous
Ins. Class
B
Max. Ambient Temperature
40 Degrees C
Duty Cycle
Continuous
Full Load Amps @ 50Hz
9.0/4.5 A
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Weight
40 lb
Usable @ 200V
Yes
Voltage @ 50Hz
230V AC
RPM @ 50Hz
1,425
Usable @ 208V
Yes
HP @ 50Hz
1
Application
Replacement Use in Agricultural Exhaust Fans

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
