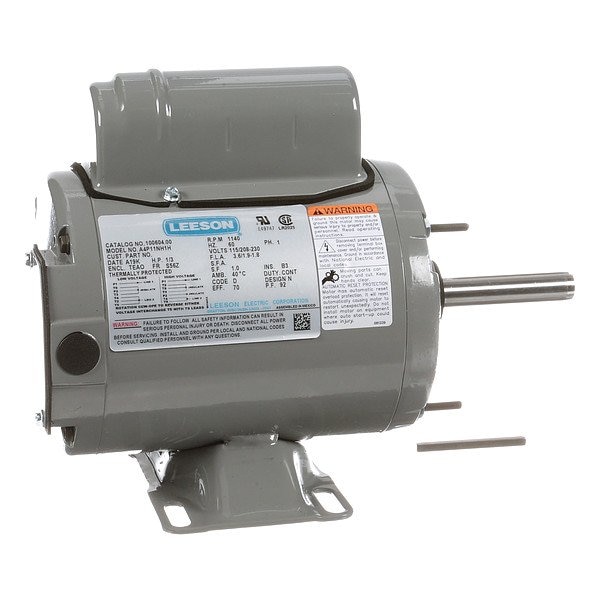

Farm Duty Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1,140 Nameplate RPM, S56Z Frame
Mfr # 100604.00
Zoro # G212190497
product price:Â $490.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,101-1,200
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
100604.00
Zoro #
G212190497
UPC #
691720004982
Country of Origin
Mexico
Dimensions
Overall Length
11 3/8 in
Length Less Shaft
8 1/4 in
Stud Size
#10-32
Shaft Dia.
5/8 in
Shaft Length
3 1/8 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
3/4 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.6/1.8 A, 56Z Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
