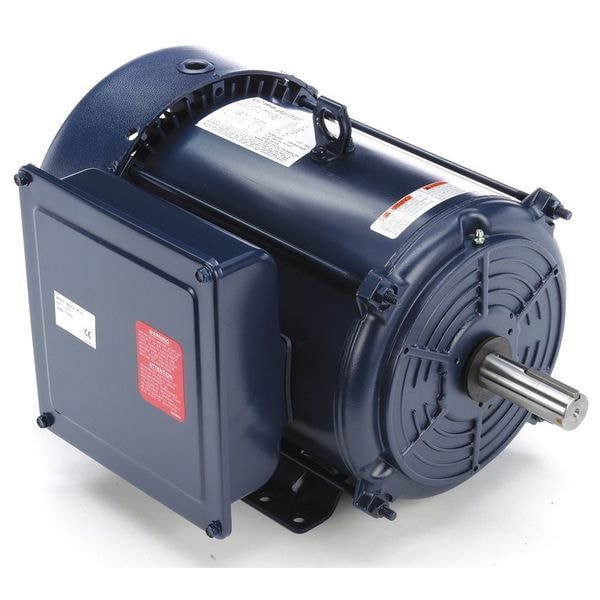

Marathon General Purpose Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,740 Nameplate RPM 213TBFW7027 - main

General Purpose Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,740 Nameplate RPM

  • Mfr # 213TBFW7027

  • Zoro # G5561875

product price:  $1,337.99
/ea
Item requires special delivery charges. A $165.00 per item surcharge will be applied.

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
5
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
213TBFW7027
Zoro #
G5561875
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
3 1/2 in
Shaft Dia.
1 1/8 in
Length Less Shaft
14 7/8 in
Overall Length
18 5/16 in

Details

Item
General Purpose Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
5
RPM Range
1,701-1,800
Voltage
230V AC
Frame
213TZ
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,740
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
Extra High Torque
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Recognized
Frame Material
Rolled steel
Ins. Class
F
Full Load Amps
22.6 A
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Motor Bearings
Ball
Motor Efficiency Group
Standard Efficient
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Finish
Enamel
Includes
Condensate Drain, Shaft Slinger
Max. Ambient Temperature
40 Degrees C
Nominal Efficiency
82.5 %
Duty
Continuous
Capacitor Required
Yes
Weight
119 lb
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
No
Usable @ 208V
No
No. of Speeds
1

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 22.6 A, 213TZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
