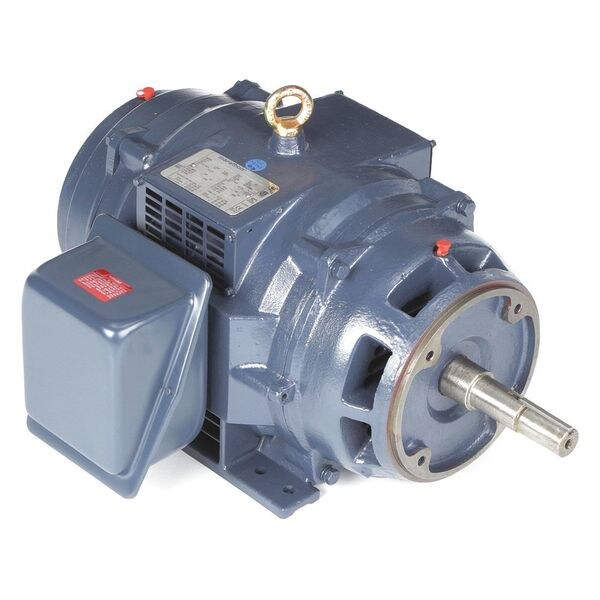

Close-Coupled Pump Motor, 3-Phase, 20 HP

  • Mfr # 256TTDBD6032
  • Zoro # G9922656
product price:
$
2,143.99
/ea
Additional $185.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
20 hp
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
256TTDBD6032
Zoro #
G9922656
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
26 in
Shaft Dia.
1 1/4 in
Length Less Shaft
20 3/4 in
Shaft Length
5 1/4 in
Bolt Circle Dia.
7 1/4 in
Height
13 1/2 in
Body Dia.
11.8 in
Bolt Circle Diameter
7 1/4 in
Shaft Diameter
1 1/4 in
Body Diameter
11.8 in
Frame Size
256JM
Wire Rope Length
26 in
Length
26 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
20 hp
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Frame
256JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Sub Application
Close-Coupled Pump
Motor Efficiency Group
NEMA Premium Efficient
Duty
Continuous
Motor Shaft Design
Keyed
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
93 %
Full Load Amps
48.5/24.3 A
Frame Material
Steel
Standards
CE Mark, CSA Certified, UL Recognized
Ins. Class
F
CC Number
CC003A
Motor Frame Material
Steel
Motor Enclosure Design
Open Dripproof
Motor Thermal Protection
None
Motor Bearings
Ball
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Inverter Rated
Inverter Rated
Hz
60 Hz
Motor Application
Pump
Phase
Three
Motor Shaft Rotation
CW/CCW
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
Weight
311 lb
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
No. of Speeds
1
Conduit Box Position
F1, F2
Shaft Type
Keyed
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Shaft Thread Type
JM
Bearing Type
Ball
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60 Hz
Number of Speeds
1
Insulation Class
F
Application
Pump
NEMA Design Class
B
Full Load Current @ 60 Hz
48.5/24.3 A
Constant Torque Rating
2:1 Constant Torque

Description

Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JM, Hz 60 Hz, Full Load Amps 48.5/24.3, Height 13 1/2 in, HP 20, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
