Shop LEESON

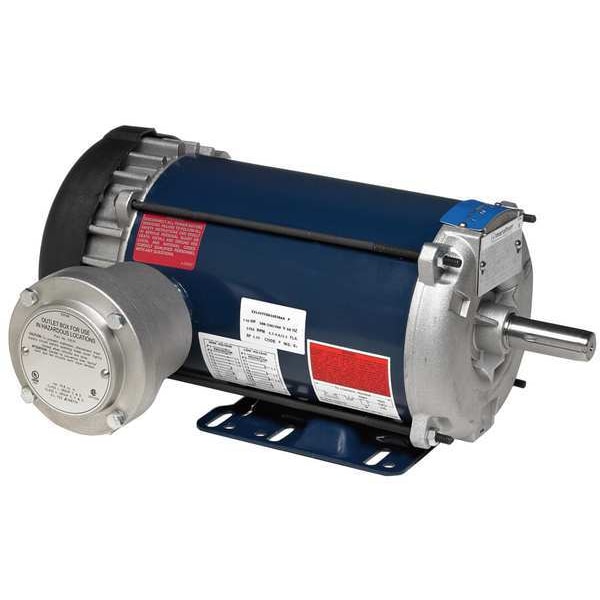

HazardousLocationMotor, 1-1/2hp, 1725RPM

  • Mfr # 056T17G15602

  • Zoro # G3632028

product price:
$
1,121.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T17G15602
Zoro #
G3632028
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
15 9/16 in
Length Less Shaft
13 11/16 in
Lead Length
18 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Frame Size
56H
Shaft Diameter
5/8 in
Wire Rope Length
15 9/16 in

Details

Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
56H
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Item
Hazardous Location Motor
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Listed
Nameplate RPM
1,725 RPM
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Bearings
Ball
Motor Application
Hazardous Location
Duty
Continuous
Motor Frame Material
Steel
Temp. Code
T3B
Hz
60 Hz
Motor Service Factor
1.15
Includes
Explosion Proof Conduit Box
No. of Speeds
1
Motor Shaft Design
Keyed
Full Load Amps
4.6/2.3 A
Motor Shaft Rotation
CW/CCW
NEMA Design
B
Ins. Class
B
Nominal Efficiency
86.5 %
Weight
932 lb
Hazardous Location Division
Division I
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Hazardous Location Group
Group C, Group D, Group F, Group G
Frame Material
Steel
Shaft Design
Keyed
Number of Speeds
1
Temperature Code
T3B
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60 Hz
Insulation Class
B
Bearing Type
Ball
Application
Hazardous Location
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
Horizontal
Product Type
Hazardous Location Motor
Full Load Current @ 60 Hz
4.6/2.3 A
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 4.6/2.3 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
