  11. HazardousLocationMotor, 3/4hp, 3450RPM
No Product Image Available

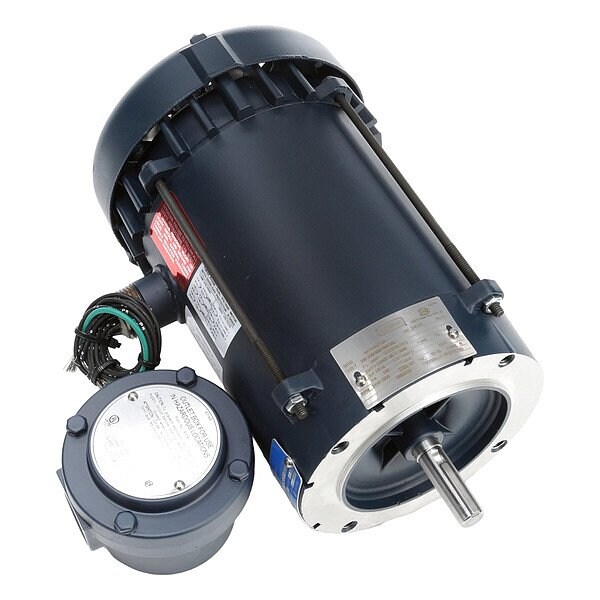

HazardousLocationMotor, 3/4hp, 3450RPM

  • Mfr # 111936.00

  • Zoro # G111935588

product price: $1,045.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
111936.00
Zoro #
G111935588
UPC #
691720010259
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Overall Length
13 7/16 in
Length Less Shaft
11 9/16 in
Shaft Dia.
5/8 in
Lead Length
6 in

Details

Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
208-230/460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Motor Application
Hazardous Location
Weight
30 lb
Conduit Box Location
Not available
Temp. Code
T3B
Motor Bearings
Ball
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
No. of Speeds
1
Item
Hazardous Location Motor
Hazardous Location Division
Division I
Max. Ambient Temp.
40 Degrees C
Service Factor @ 50Hz
1
CC Number
Not Available
Motor Service Factor
1
Voltage @ 50Hz
190/380V AC
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Ins. Class
B
NEMA Design
B
RPM @ 50Hz
2,850 RPM
Nameplate RPM
3,450 RPM
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Includes
Explosion Proof Conduit Box
Full Load Amps
1.6 A
Nominal Efficiency
68 %
Voltage Compatibility
208V AC, 230V AC, 460V AC
Hz
60/50 Hz
HP @ 50Hz
1/2 hp
Full Load Amps @ 50Hz
1.6 A
Standards
CSA Certified, UL Listed
Motor Shaft Design
Keyed
Hazardous Location Group
Group C, Group D, Group F, Group G

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
