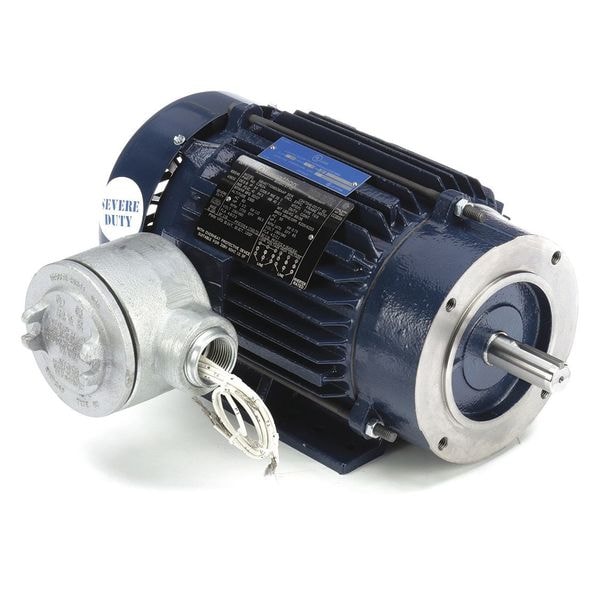

HazLoc Motor, 1-1/2 HP, 1755 RPM, 145TC
Mfr # 145TTGN6536
Zoro # G5538522
product price: $1,009.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
145TTGN6536
Zoro #
G5538522
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
15 3/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Length Less Shaft
13 1/8 in
Lead Length
12 in
Manufacturers Warranty Length
3 yr
Description
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 4.6/2.3 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
