Shop MARATHON

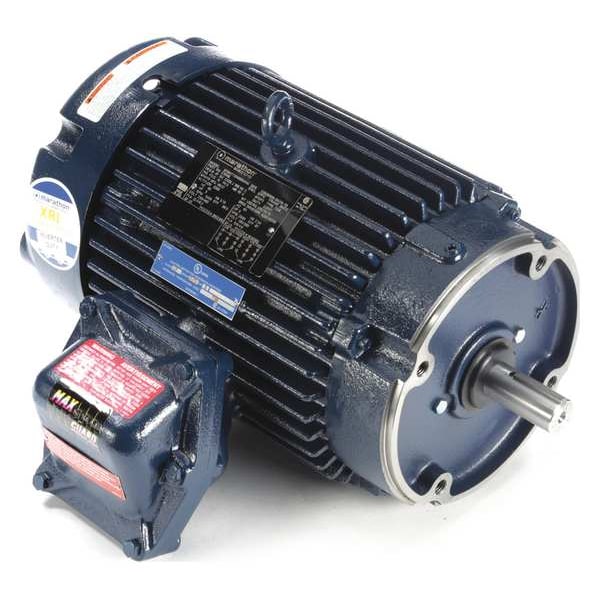

Hazardous Location Motor, 5 HP, 12.4/6.2A

  • Mfr # 184TTGCD16004

  • Zoro # G7409075

product price:
$
1,419.99
/ea
Additional $85.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
184TTGCD16004
Zoro #
G7409075
UPC #
-
Country of Origin
Mexico
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
184TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Frame Material
Cast Iron
Motor Service Factor
1
Motor Application
Hazardous Location
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
NEMA Design
B
Motor Shaft Rotation
CW/CCW
Full Load Amps
12.4/6.2 A
Nameplate RPM
3,495 RPM
Ins. Class
F
Motor Frame Material
Cast Iron
Temp. Code
T3B
Hz
60 Hz
Motor Bearings
Ball
Motor Efficiency Group
NEMA Premium Efficient
Item
Hazardous Location Motor
Duty
Continuous
Standards
UL Certified for Canada, UL Listed
Nominal Efficiency
88.5 %
CC Number
CC003A
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Weight
175 lb
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Duty Cycle
Continuous
Hazardous Location Division
Division I
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Hazardous Location Group
Group D, Group F, Group G
Bearing Type
Ball
Temperature Code
T3B
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Horizontal
Number of Speeds
1
Shaft Design
Keyed
NEMA Design Class
B
Application
Hazardous Location
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Product Type
Hazardous Location Motor
Full Load Current @ 60 Hz
12.4/6.2 A

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,495 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 12.4/6.2 A, 184TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
