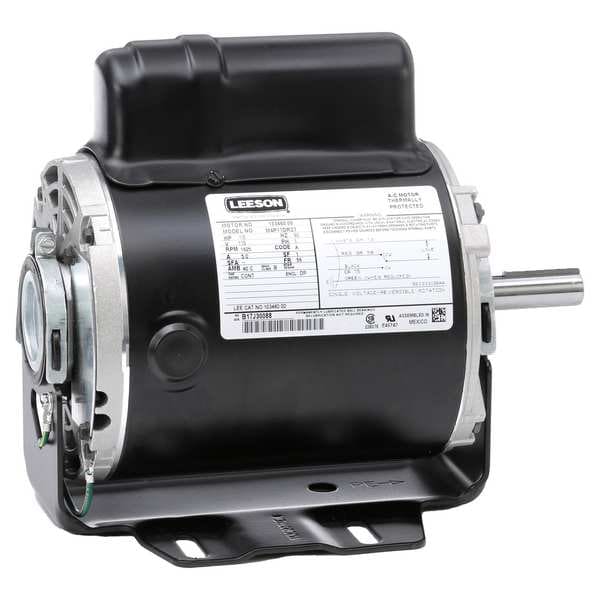

Instant Reverse Motor, 1/2hp, 115V AC
Mfr # 103460.00
Zoro # G402014923
product price: $331.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Drip Proof
HP
1/2 hp
Nameplate RPM
1,625 RPM
Frame
56
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
103460.00
Zoro #
G402014923
UPC #
-
Country of Origin
Mexico
Dimensions
Manufacturers Warranty Length
18 mo
Stud Size
#8-32 x 2
Length Less Shaft
8 1/16 in
Overall Length
9 15/16 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Description
Instant Reverse Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.0 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Number of Wires 3, Motor Frame Material Steel
