Shop CENTURY

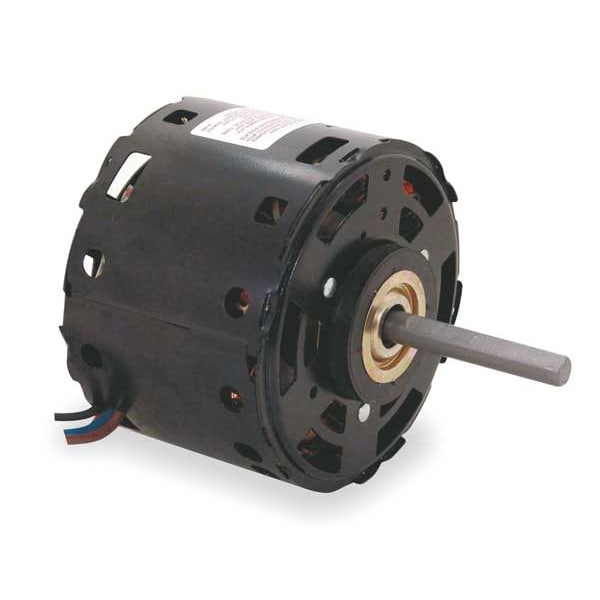

Condenser Fan Motor, 1/3 hp

  • Mfr # OLE1036A

  • Zoro # G0421416

product price:
$
222.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
OLE1036A
Zoro #
G0421416
UPC #
094704980096
Country of Origin
India
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
4
Voltage
115V AC
Motor Shaft Rotation
CWSE
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Ring
Replacement For
321P267
Hz
60
Ins. Class
B
Voltage Compatibility
115V AC, 120V AC
Motor Service Factor
1
Nameplate RPM
1,075
Motor Sub Application
Condenser Fan
OEM Replacement Brand
Lennox
Motor Bearings
Sleeve
Max. Ambient Temp.
40 Degrees C
Capacitor Required
Capacitor Included
Motor Application
OEM Replacement
Number of Shafts
1
Item
Condenser Fan Motor
Full Load Amps
6 A
Motor Shaft Design
Flat
Application
Lennox
Duty
Continuous
Motor Thermal Protection
Auto
Standards
CSA Certified, UL Recognized
Weight
10 lb
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Ring to Ring Center
4 3/4 in
Motor Mounting Position
Horizontal
Rotation
CCWLE
Mounting
Ring
Number of Speeds
4
Full Load Current @ 60 Hz
6 A
Shaft Design
Flat
Frame Material
Steel
Mounting Position
Horizontal
Sub Application
Condenser Fan
Ambient Temperature - Maximum
40 Degrees C
Compatible Brand
Lennox
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Sleeve

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, Full Load Amps 6 A, 48Y Frame, OEM Replacement Brand Lennox, Replacement For 321P267, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over
