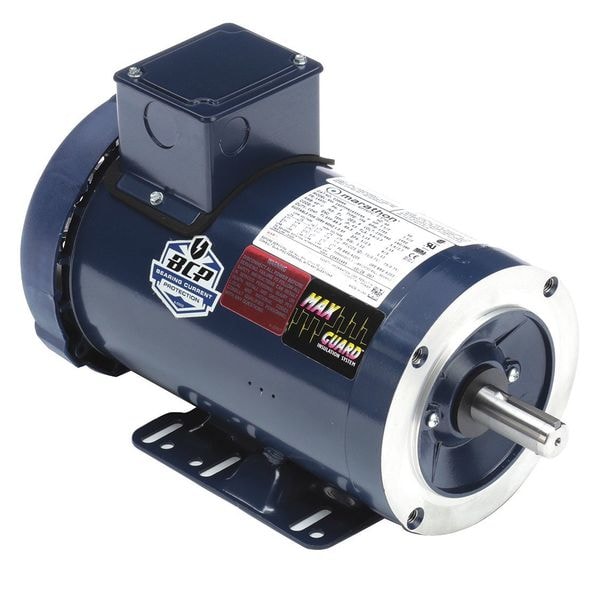

Three-Phase General Purpose Motor, 1 1/2 HP, 145TC Frame, 230/460V AC Voltage
Mfr # 145TTFR16331
Zoro # G6418721
product price: $624.29
/ea
Free Shipping & Returns
Key Features
HP
1 1/2
Nameplate RPM
1755 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.6/2.3 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
145TTFR16331
Zoro #
G6418721
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
12 1/4 in
Overall Length
14 3/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1755 rpm, Frame 145TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.6/2.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
