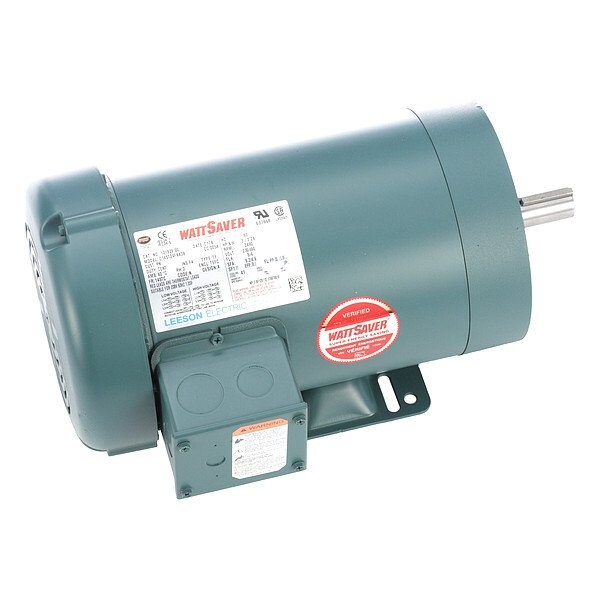

Three-Phase General Purpose Motor, 3 HP, 145TC Frame, 230/460V Voltage, 3,490 Nameplate RPM

  • Mfr # 121929.00

  • Zoro # G211929456

product price:  $890.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,490
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
4.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
121929.00
Zoro #
G211929456
UPC #
691720002209
Country of Origin
United States

Dimensions

Length Less Shaft
11 11/16 in
Overall Length
13 15/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Shaft Diameter
7/8 in
Frame Size
145TC

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3,490
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
4.0 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3490
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460 V
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA Certified, UL Listed
NEMA Design
A
Weight
49 lb
Motor Thermal Protection
T-Stat
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Nameplate RPM @ 50 Hz
1,465 RPM
Efficiency Rating
Premium Efficiency (IE3)
Insulation Class
F
NEMA Design Class
A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Application
General Purpose
Number of Speeds
1
Frequency
60 Hz
Mounting Position
Horizontal
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
4.0 A
Nameplate Voltage @ 50 Hz
190/380V AC

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3,490, Frame 145TC, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 3490, CE, CSA Certified, UL Listed
