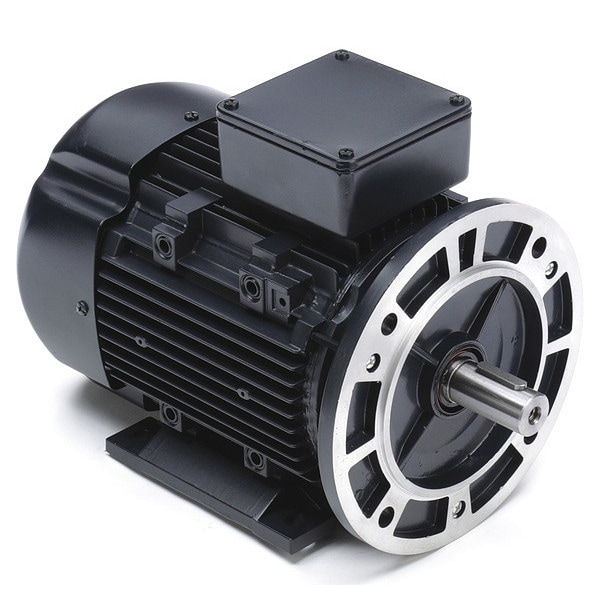

Leeson Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM 090LT34FH6520 - main

Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM

  • Mfr # 090LT34FH6520

  • Zoro # G5648133

product price:  $870.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3500 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.2/3.6 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
090LT34FH6520
Zoro #
G5648133
UPC #
-
Country of Origin
China

Dimensions

Length Less Shaft
276 mm
Overall Length
326 mm
Shaft Dia.
24 mm
Shaft Length
50 mm
Frame Size
90L
Shaft Diameter
24 mm

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3500 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.2/3.6 A
Frame
90L
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Aluminum
Motor Mounting Position
Horizontal
Nominal Efficiency
87.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
HP @ 50Hz
3 hp
Duty Cycle
Continuous
Weight
42 lb
Full Load Amps @ 50Hz
7.2/3.6 A
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
230/460
Inverter Rated
Yes
RPM @ 50Hz
3500 rpm
Service Factor @ 50Hz
1.15
Kw
2.24
Number of Speeds
1
Inverter Rating
Inverter Rated
Efficiency Rating
NEMA Premium Efficiency
Frequency
60/50 Hz
Full Load Current @ 50 Hz
7.2/3.6 A
Full Load Current @ 60 Hz
7.2/3.6 A
Nameplate Service Factor @ 50 Hz
1.15
Product Type
General Purpose Motor
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Voltage @ 50 Hz
190/380V AC, 220/415V AC
Mounting Position
Horizontal
Nameplate RPM @ 50 Hz
2,930/2,940/2,945/2,885/2,900/2,910 RPM
Nameplate Horsepower @ 50 Hz
3 hp
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Bearing Type
Ball

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.24 kW, Nameplate RPM 3500 rpm, Frame 90L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600
