Shop LEESON

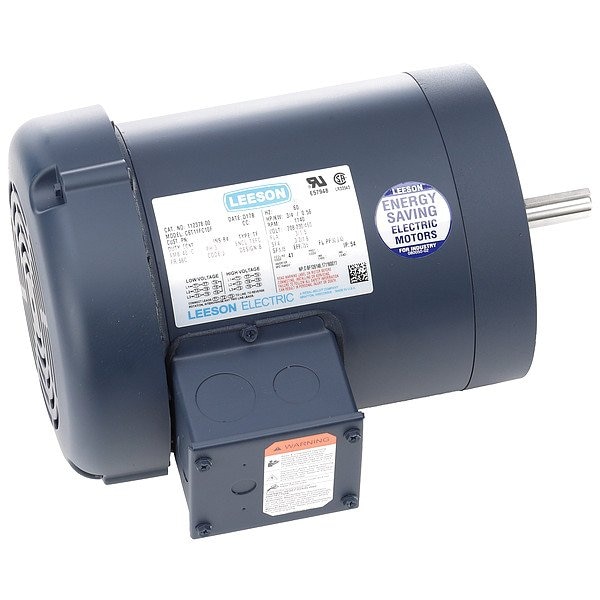

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # 056T11F15542

  • Zoro # G907101302

product price:  $570.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,140
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.0/1.5 A
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11F15542
Zoro #
G907101302
UPC #
691720010754
Country of Origin
United States

Dimensions

Overall Length
11 1/2 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56C
Wire Rope Length
11 1/2 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1,140
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.0/1.5 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
208-230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
NEMA 56
Nominal Efficiency
75.5 %
Standards
CSA, UL
Weight
32 lb
NEMA Design
B
Motor Thermal Protection
None
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Removable Base
Permanently Lubricated
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Insulation Class
B
NEMA Design Class
B
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Bearing Type
Ball
Frame Material
Steel
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Full Load Current @ 60 Hz
3.0/1.5 A
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Number of Speeds
1
Nameplate RPM @ 50 Hz
965/975 RPM
Bearing Lubrication Type
Permanently Lubricated

Description

General Purpose Motor, Three-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,140, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, 1,101-1,200, CSA, UL
