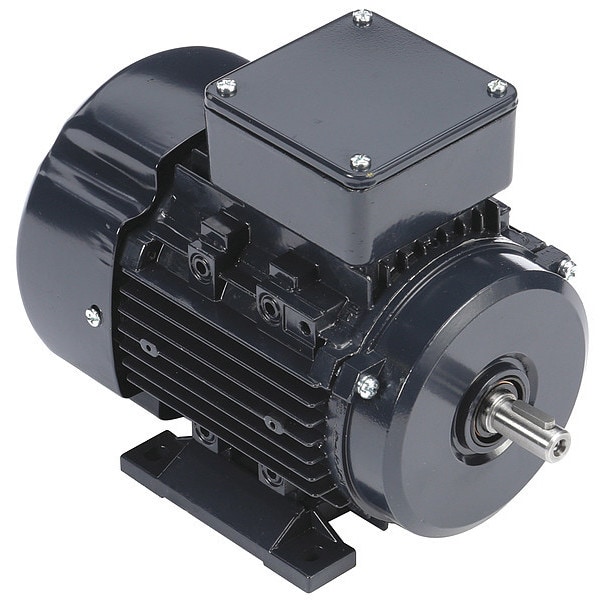

Leeson Three-Phase General Purpose Motor, 3/4 HP, 80 Frame, 230/460V AC Voltage, 1690 rpm Nameplate RPM 80T17FH5326 - main
Shop LEESON

Three-Phase General Purpose Motor, 3/4 HP, 80 Frame, 230/460V AC Voltage, 1690 rpm Nameplate RPM

  • Mfr # 80T17FH5326

  • Zoro # G5677892

product price:  $342.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
1690 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.5/1.3 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
80T17FH5326
Zoro #
G5677892
UPC #
-
Country of Origin
China

Dimensions

Length Less Shaft
242 mm
Overall Length
282 mm
Shaft Dia.
19 mm
Shaft Length
40 mm
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1690 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.5/1.3 A
Frame
80
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1601-1700
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Aluminum
Motor Mounting Position
Horizontal
Nominal Efficiency
74 %
Standards
CE Certified, CSA Certified, UL Recognized
Motor Thermal Protection
None
Usable @ 208V
No
NEMA Design
B
HP @ 50Hz
3/4 hp
Full Load Amps @ 50Hz
2.5/1.3 A
Weight
23 lb
Inverter Rated
Yes
Usable @ 200V
No
RPM @ 50Hz
1500 rpm
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Voltage @ 50Hz
200/400
Kw
0.56

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, 0.56 kW, Nameplate RPM 1690 rpm, Frame 80, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 2.5/1.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 1601-1700
