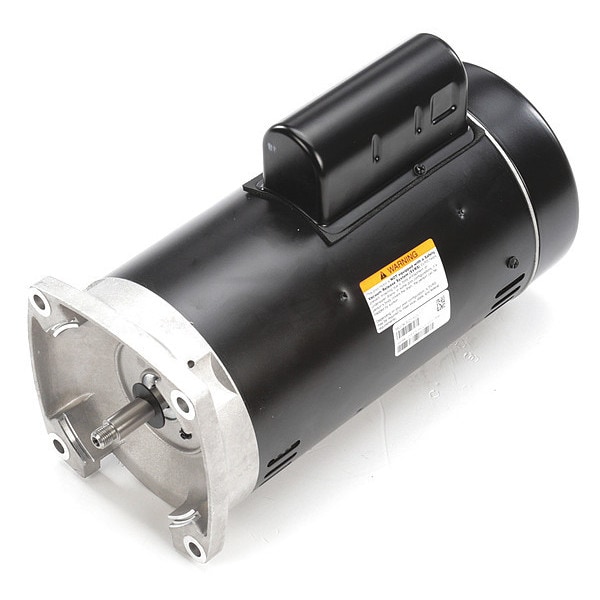

Pool Pump Motor, Capacitor-Start/Run, 3 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # SQ1302V1
  • Zoro # G1287727
product price:
$
641.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3
Motor Service Factor
1.15
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SQ1302V1
Zoro #
G1287727
UPC #
-
Country of Origin
China
Item
Square Flange Pool Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3
Motor Service Factor
1.15
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
208V AC to 230V AC
Motor Mounting Type
Face
Full Load Amps
15.0-13.3 A
Motor Application
Pump
Max. Ambient Temp.
50 Degrees C
Design
Two Compartment
Hz
60 Hz
Standards
CSA, UL
Motor Efficiency Group
Standard Efficient
Motor Thermal Protection
Auto
Motor Sub Application
Pool and Spa Pump
Ins. Class
B
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Shaft Material
Stainless Steel
Motor Bearings
Ball
Duty Cycle
Continuous
No. of Speeds
1
Weight
43 lb
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Threaded
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Warranty
2ACD2
Number of Speeds
1
Sub Application
Pool and Spa Pump
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
50 Degrees C
Number of Wires
8
Mounting Position
Horizontal
Insulation Class
B
Shaft Design
Threaded
Product Type
Pump Motor
Full Load Current @ 60 Hz
15.0-13.3 A
Frame Material
Steel
Frequency
60 Hz
Application
Pump

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Body Dia.
6.6 in
Height
6 9/16 in
Length Less Shaft
13 1/2 in
Overall Length
14 7/16 in
Shaft Diameter
5/8 in
Body Diameter
6.6 in
Frame Size
56Y
Wire Rope Length
14 7/16 in
Length
14 7/16 in

Description

Square Flange Pool Pump Motor, Body Dia. 6.6 in, Duty Cycle Continuous, Frame 56Y, Hz 60 Hz, Full Load Amps 15.0-13.3, Height 6 9/16 in, HP 3, Ins. Class B, Length Less Shaft 13 1/2 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
