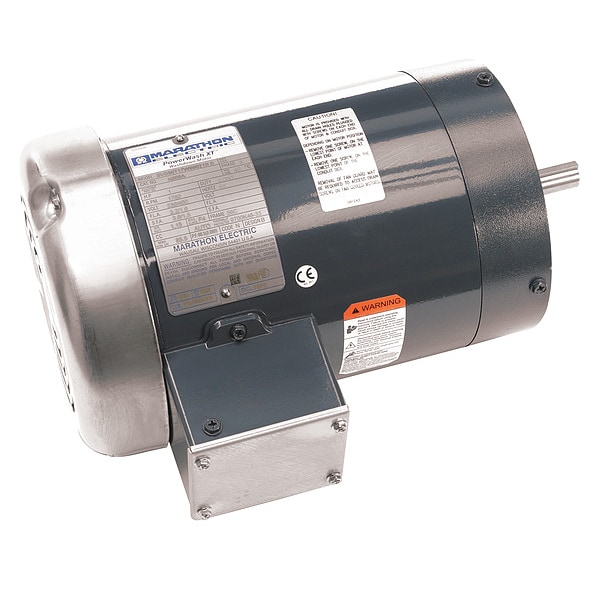

Three-Phase Severe Duty Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # 056T17W99021

  • Zoro # G8498029

product price:  $730.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1760 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.2/1.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T17W99021
Zoro #
G8498029
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
10 13/16 in
Overall Length
12 7/8 in
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Manufacturers Warranty Length
1 yr
Frame Size
56C
Shaft Diameter
5/8 in

Details

Item
Severe Duty Motor
HP
1
Nameplate RPM
1760 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.2/1.6 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
36 lb
Full Load Current @ 60 Hz
3.2/1.6 A
Frequency
60 Hz
Frame Material
Steel
Product Type
Severe Duty Motor
Mounting Position
Horizontal
Nameplate RPM @ 50 Hz
1,470 RPM
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Voltage @ 50 Hz
380V AC
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Application
General Purpose
Bearing Type
Ball
Number of Speeds
1
Inverter Rating
Not Inverter Rated

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.2/1.6 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
