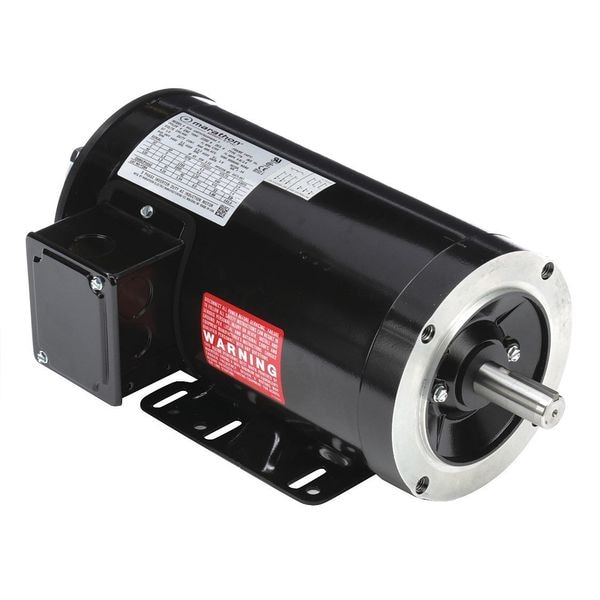

Vector Motor, 4.5 lb-ft, 1.5 HP, 230/460 V
Mfr # 145THTR15540
Zoro # G0743897
product price:Â
$
1,500.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
HP
1 1/2
Torque
4.5 ft-lb
Nameplate RPM
1,755
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 145THTR15540
- Zoro #
- G0743897
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 16 1/16 in
- Shaft Length
- 2 1/8 in
- Shaft Dia.
- 7/8 in
- Length Less Shaft
- 13 15/16 in
- Encoder Shaft Dimensions
- 5/8 in x 1 3/4 in
- Manufacturers Warranty Length
- 3 Years
- Encoder Shaft Length
- 1 3/4 in
- Encoder Shaft Diameter
- 5/8 in
- Shaft Diameter
- 7/8 in
- Frame Size
- 145TC
- Wire Rope Length
- 16 1/16 in
- Length
- 16 1/16 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 1 1/2 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Torque 4.5 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
