  11. Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm

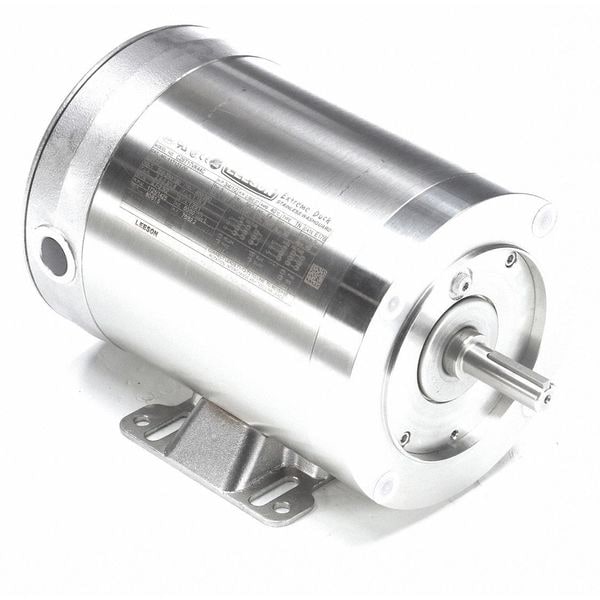

Leeson Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm 117121.00 - main

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm

  • Mfr # 117121.00

  • Zoro # G2785054

product price: $1,213.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
117121.00
Zoro #
G2785054
UPC #
691720367438
Country of Origin
United States

Dimensions

Body Dia.
6.56 in
Overall Length
11 1/2 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
9 1/2 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Inverter Rated
Inverter Rated
Includes
Base, Bearing Carrier Cover, Conduit Box Cover Endshields, Frame
Shaft Material
Stainless Steel
Max. Ambient Temp.
40 Degrees C
Endshields
Stainless steel
NEMA Design
B
Duty
Continuous
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Standards
BISSC Approved, CSA Certified, UL Recognized
Motor Bearings
Ball
Conduit Box
Oversized Stainless Steel BICB and Threaded Cover with O Ring
Hz
60/50 Hz
Motor Application
General Purpose
Nominal Efficiency
80 %
Application
Chemical Processing
Motor Mounting Type
C-Face, Rigid Base
Motor Service Factor
1.15
Footnotes
8, 11
Frame Material
Stainless Steel
Nameplate RPM
1,725 RPM
Full Load Amps
2.4/1.2 A
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
Ins. Class
F
Drain Plugs
None
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Duty Cycle
Continuous
Endshield Material
Stainless Steel
Usable @ 208V
Usable at 208V
Service Factor @ 50Hz
1.15
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Weight
47 lb
Voltage @ 50Hz
460V AC
RPM @ 50Hz
1,725 RPM
HP @ 50Hz
3/4 hp
Full Load Amps @ 50Hz
2.4-2.3/1.2 A
Finish
Unfinished
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
