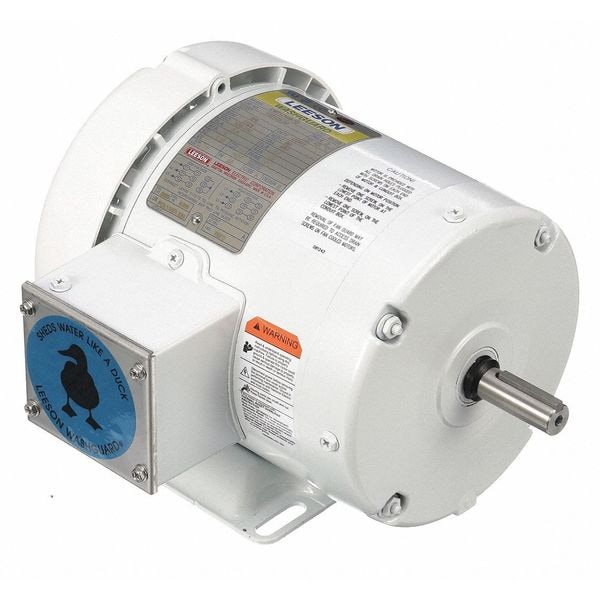

Washdown Motor, 3/4 HP, Rigid Base, CWSE
Mfr # 112428.00
Zoro # G4609249
product price: $491.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
112428.00
Zoro #
G4609249
UPC #
691720010747
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Length Less Shaft
8 9/16 in
Shaft Length
1 7/8 in
Overall Length
10 1/2 in
Body Dia.
7.38 in
Manufacturers Warranty Length
1 yr
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
